004773090

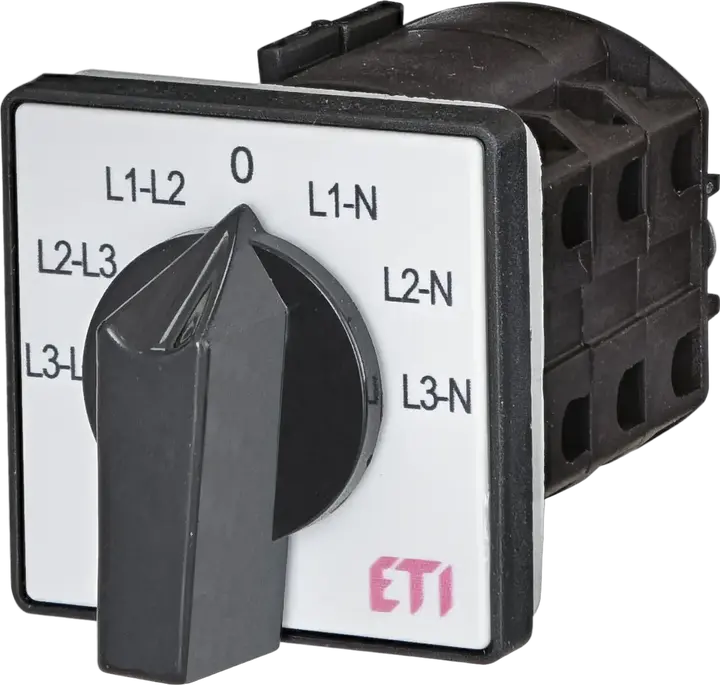

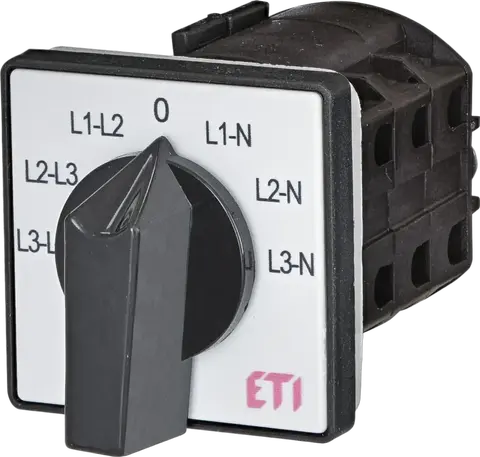

CS 25 66 U Cam switch
- ETI Code:
- 004773090
- Rated current:
- 25 A
- Catalogue Group:
- Rotary cam switch
- Type of Installation:
- Front mounting
- Type description:
- V 3L
- Number of poles:
- 4
- Thermal current Ith:
- 25 A
- Rated operational current Ie AC-21 at 400V:
- 25 A
- Max. rated operational voltage (AC):
- 480 V
- Rated Insulation Voltage:
- 690 V
- Operation:
- Voltmeter switches
21 Logistics
Product
- Net weight of the product
- 0.16 kg
- Net width
- 50.2 mm
- Net height
- 69.3 mm
- Net depth
- 94.32 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895660941
- Basic packaging weight
- 0.16 kg
- Basic Packaging Dimensions Height
- 124 mm
- Basic Packaging Dimensions Width
- 58 mm
- Basic Packaging Dimensions Depth
- 58 mm
- Basic packaging volume
- 0.417 dm³
Transport Packaging
- Transport packaging quantity
- 84 pcs
- EAN code for a transport packaging
- 3838895660958
- Transport packaging weight
- 14.44 kg
- Transport Packaging Dimensions Height
- 240 mm
- Transport Packaging Dimensions Width
- 480 mm
- Transport Packaging Dimensions Depth
- 400 mm
- Transport packaging volume
- 46.08 dm³
- Pallet quantity
- 1,764 pcs
- Customs tariff
- 85363030
6 ETIM
- Measurement between phases possible
- ✓
- Degree of protection (IP)
- IP40
- With zero (off) position
- ✓
- Device construction
- Front installation
- Measurement between phase and neutral conductor possible
- ✓
- With control element
- ✓
ETIM Classification – Version 9.0
