Rotary cam switches

Introduction

Rotary cam switches are versatile and reliable switching devices used to control the flow of electricity in various industrial and commercial applications. Designed for durability and precision, they allow for manual switching between different circuit positions, making them ideal for functions such as motor control, changeover switching, and instrumentation. With a compact design and a wide range of configurations, rotary cam switches offer flexibility, easy installation, and dependable performance in demanding environments.

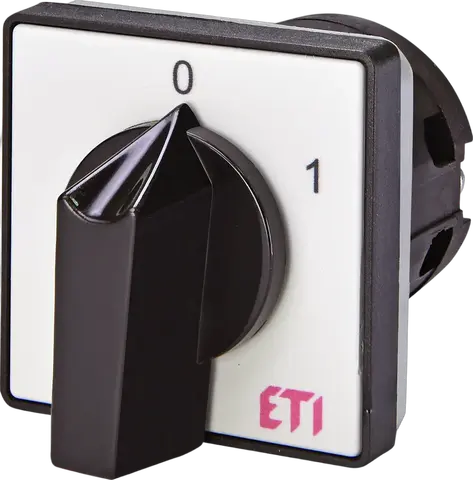

CS 16 90 U

Class name: Cam switch
Number of poles: 1
Thermal current Ith: 16 A
Rated operational current Ie AC-21 at 400V: 16 A
Max. rated operational voltage (AC): 400 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

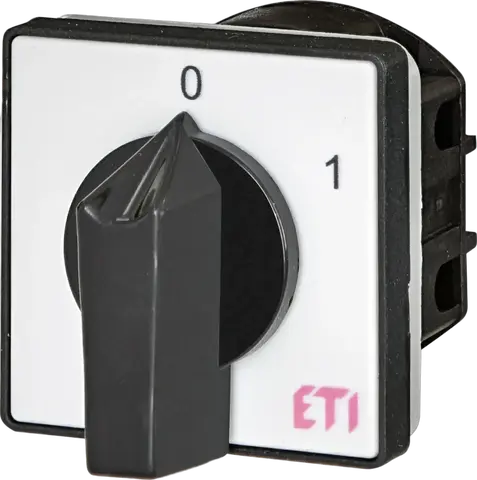

CS 25 90 U

Class name: Cam switch
Number of poles: 1
Thermal current Ith: 25 A
Rated operational current Ie AC-21 at 400V: 25 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

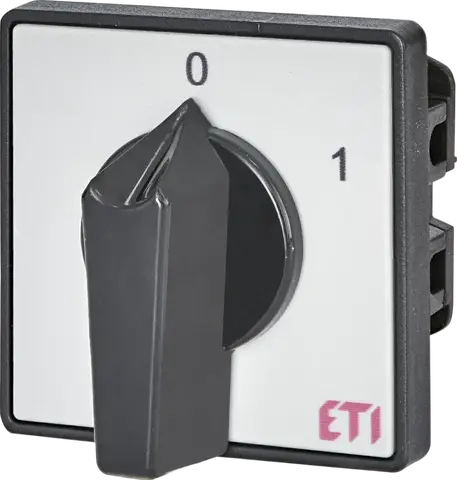

CS 32 90 U

Class name: Cam switch
Number of poles: 1
Thermal current Ith: 32 A
Rated operational current Ie AC-21 at 400V: 32 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

CS 40 90 U

Class name: Cam switch
Number of poles: 1
Thermal current Ith: 40 A
Rated operational current Ie AC-21 at 400V: 40 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

CS 63 90 U

Class name: Cam switch
Number of poles: 1
Thermal current Ith: 63 A
Rated operational current Ie AC-21 at 400V: 63 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

CS 80 90 U

Class name: Cam switch
Number of poles: 1
Thermal current Ith: 80 A
Rated operational current Ie AC-21 at 400V: 80 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

CS 100 90 U

Class name: Cam switch
Number of poles: 1
Thermal current Ith: 100 A
Rated operational current Ie AC-21 at 400V: 85 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

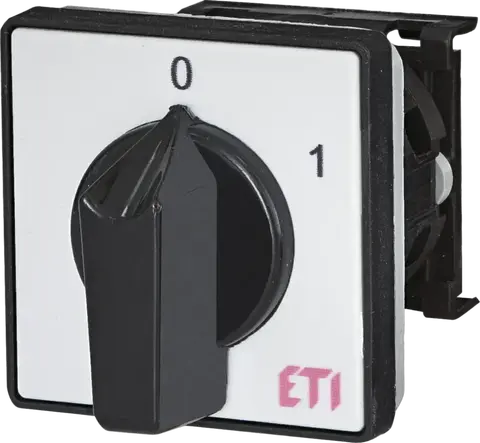

CS 16 90 L

Class name: Cam switch
Function: Rotary cam switches
Number of poles: 1
Thermal current Ith: 16 A
Rated operational current Ie AC-21 at 400V: 16 A
Max. rated operational voltage (AC): 400 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

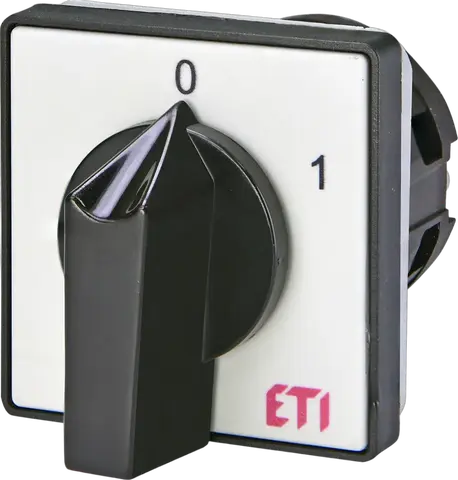

CS 16 91 U

Class name: Cam switch
Number of poles: 2
Thermal current Ith: 16 A
Rated operational current Ie AC-21 at 400V: 16 A
Max. rated operational voltage (AC): 400 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

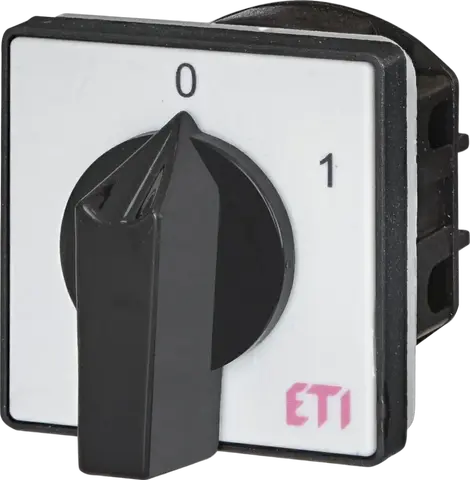

CS 25 91 U

Class name: Cam switch
Number of poles: 2
Thermal current Ith: 25 A
Rated operational current Ie AC-21 at 400V: 25 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

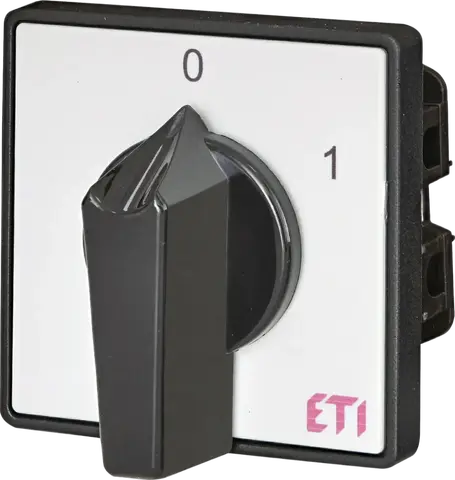

CS 32 91 U

Class name: Cam switch
Number of poles: 2
Thermal current Ith: 32 A
Rated operational current Ie AC-21 at 400V: 32 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

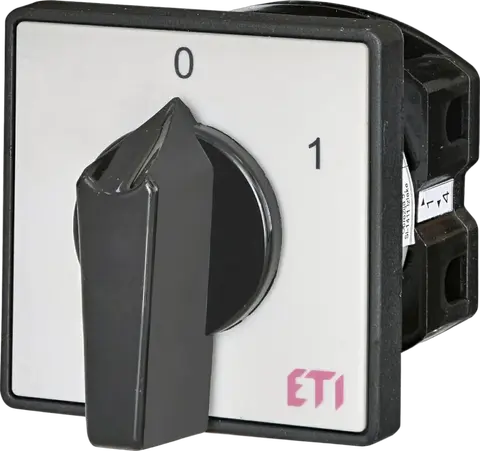

CS 40 91 U

Class name: Cam switch
Number of poles: 2
Thermal current Ith: 40 A
Rated operational current Ie AC-21 at 400V: 40 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

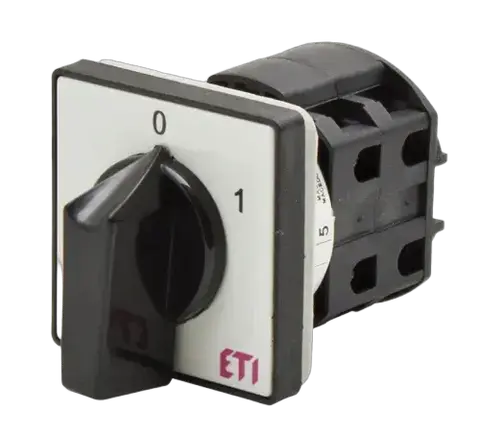

CS 63 91 U

Class name: Cam switch
Number of poles: 2
Thermal current Ith: 63 A
Rated operational current Ie AC-21 at 400V: 63 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

CS 80 91 U

Class name: Cam switch
Number of poles: 2
Thermal current Ith: 80 A
Rated operational current Ie AC-21 at 400V: 80 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

CS 100 91 U

Class name: Cam switch
Number of poles: 2
Thermal current Ith: 100 A
Rated operational current Ie AC-21 at 400V: 85 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

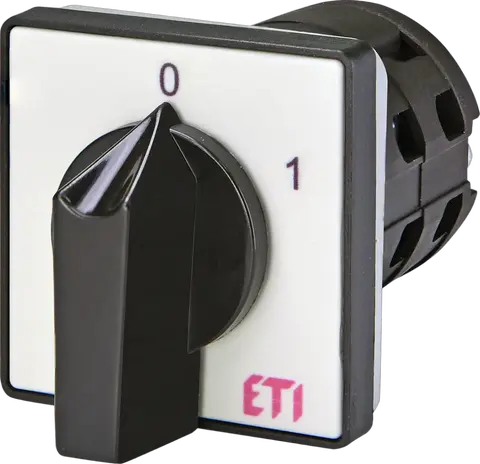

CS 16 10 U

Class name: Cam switch
Number of poles: 3
Thermal current Ith: 16 A
Rated operational current Ie AC-21 at 400V: 16 A
Max. rated operational voltage (AC): 400 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

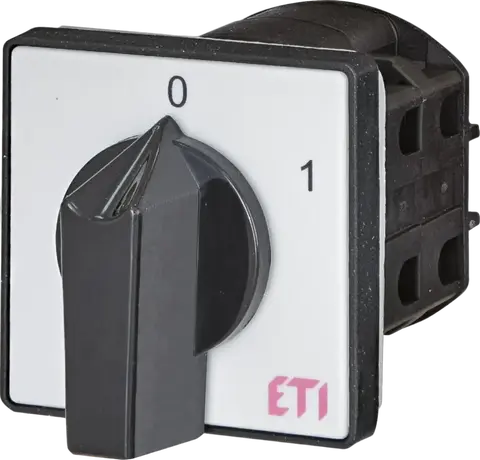

CS 25 10 U

Class name: Cam switch
Number of poles: 3
Thermal current Ith: 25 A
Rated operational current Ie AC-21 at 400V: 25 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

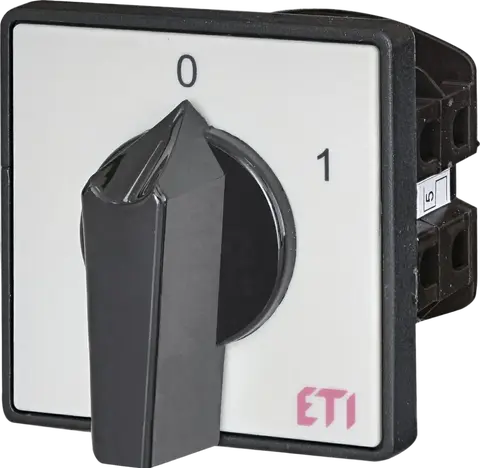

CS 32 10 U

Class name: Cam switch
Number of poles: 3
Thermal current Ith: 32 A
Rated operational current Ie AC-21 at 400V: 32 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

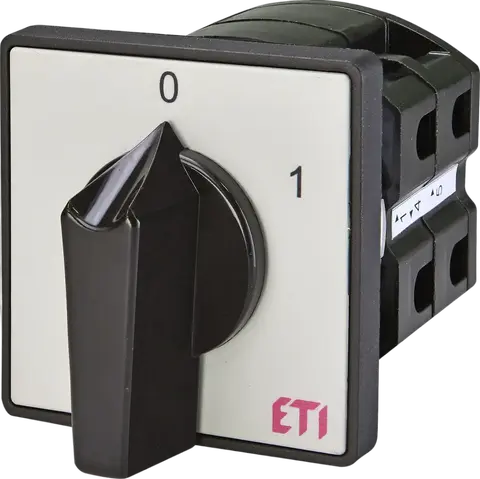

CS 40 10 U

Class name: Cam switch
Number of poles: 3
Thermal current Ith: 40 A
Rated operational current Ie AC-21 at 400V: 40 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle

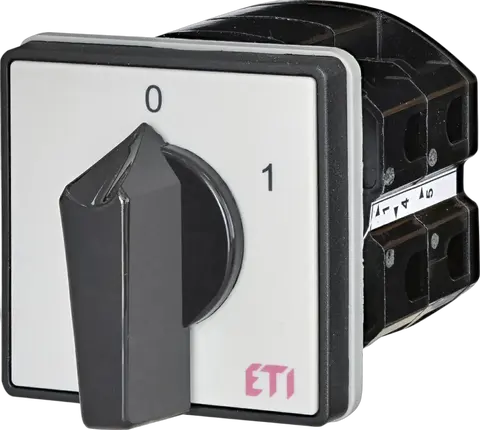

CS 63 10 U

Class name: Cam switch
Number of poles: 3
Thermal current Ith: 63 A
Rated operational current Ie AC-21 at 400V: 63 A
Max. rated operational voltage (AC): 480 V
Rated Insulation Voltage: 690 V
Operation: ON-OFF (0-1) switches with 60° switching angle
