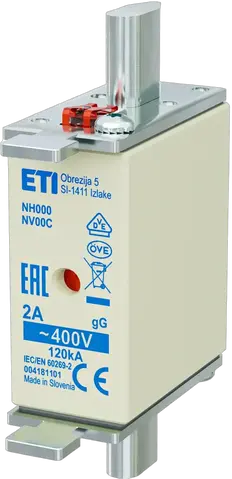

004181101 Preview Close NH000 gG 2A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 2 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 0.7 W Operating joule integral (A2s) 17 Prearcing joule integral (A2s) 7.3 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181102 Preview Close NH000 gG 4A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 4 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 0.9 W Operating joule integral (A2s) 87 Prearcing joule integral (A2s) 38 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181103 Preview Close NH000 gG 6A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 6 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 1.3 W Operating joule integral (A2s) 199 Prearcing joule integral (A2s) 121 Standards IEC 60269-1, IEC 60269-2 Application For cable protection

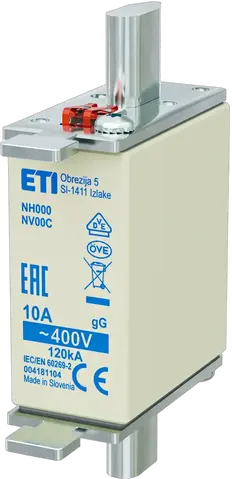

004181104 Preview Close NH000 gG 10A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 10 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 1.3 W Operating joule integral (A2s) 383 Prearcing joule integral (A2s) 90 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181105 Preview Close NH000 gG 16A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 16 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 2.4 W Operating joule integral (A2s) 721 Prearcing joule integral (A2s) 220 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181106 Preview Close NH000 gG 20A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 20 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 2.7 W Operating joule integral (A2s) 1,210 Prearcing joule integral (A2s) 400 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181107 Preview Close NH000 gG 25A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 25 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 2.6 W Operating joule integral (A2s) 5,470 Prearcing joule integral (A2s) 1,200 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181108 Preview Close NH000 gG 32A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 32 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 3 W Operating joule integral (A2s) 6,838 Prearcing joule integral (A2s) 1,760 Standards IEC 60269-1, IEC 60269-2 Application For cable protection

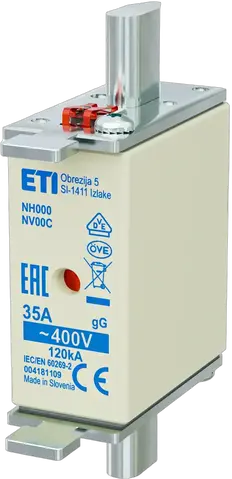

004181109 Preview Close NH000 gG 35A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 35 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 3.3 W Operating joule integral (A2s) 10,033 Prearcing joule integral (A2s) 2,500 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181110 Preview Close NH000 gG 40A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 40 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 3.4 W Operating joule integral (A2s) 11,670 Prearcing joule integral (A2s) 3,300 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181111 Preview Close NH000 gG 50A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 50 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 4.9 W Operating joule integral (A2s) 24,370 Prearcing joule integral (A2s) 8,200 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181112 Preview Close NH000 gG 63A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 63 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 5.8 W Operating joule integral (A2s) 37,000 Prearcing joule integral (A2s) 11,100 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181113 Preview Close NH000 gG 80A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 80 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 5.1 W Operating joule integral (A2s) 56,850 Prearcing joule integral (A2s) 14,500 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181114 Preview Close NH000 gG 100A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 100 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 5.8 W Operating joule integral (A2s) 101,000 Prearcing joule integral (A2s) 26,000 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181217 Preview Close NH000 gG 125A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 125 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 100 kA Power dissipation 8.8 W Operating joule integral (A2s) 117,900 Prearcing joule integral (A2s) 30,000 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004181216 Preview Close NH000 gG 160A/400V Class name Fuse link Fuse type NH Size NH000 Rated current 160 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 100 kA Power dissipation 9.6 W Operating joule integral (A2s) 170,620 Prearcing joule integral (A2s) 35,100 Standards IEC 60269-1, IEC 60269-2 Application For cable protection

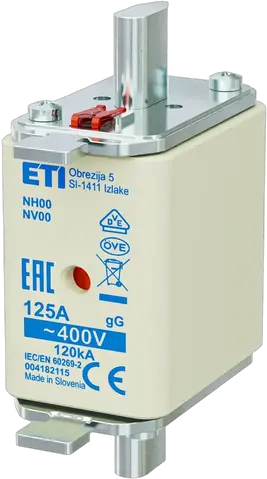

004182115 Preview Close NH00 gG 125A/400V Class name Fuse link Fuse type NH Size NH00 Rated current 125 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation (0,7xIn) 4.1 Power dissipation 9 W Operating joule integral (A2s) 115,000 Prearcing joule integral (A2s) 34,700 Standards IEC 60269-1, IEC 60269-2 Application For cable protection

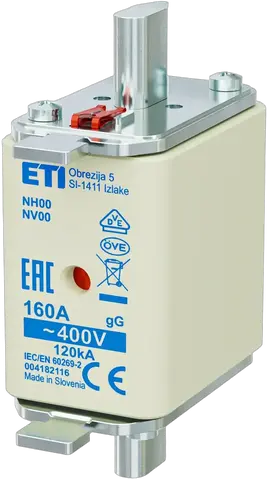

004182116 Preview Close NH00 gG 160A/400V Class name Fuse link Fuse type NH Size NH00 Rated current 160 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation 11.2 W Operating joule integral (A2s) 180,000 Prearcing joule integral (A2s) 76,000 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004184103 Preview Close NH1C gG 6A/400V Class name Fuse link Fuse type NH Size NH1C Rated current 6 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation (0,7xIn) 1 Power dissipation 2.2 W Operating joule integral (A2s) 118 Prearcing joule integral (A2s) 67 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
004184104 Preview Close NH1C gG 10A/400V Class name Fuse link Fuse type NH Size NH1C Rated current 10 A Time-Current Characteristic gG Indicator Combination fuse status indicator Rated AC voltage 400 V Breaking capacity AC 120 kA Power dissipation (0,7xIn) 0.7 Power dissipation 1.6 W Operating joule integral (A2s) 660 Prearcing joule integral (A2s) 200 Standards IEC 60269-1, IEC 60269-2 Application For cable protection
