002470021

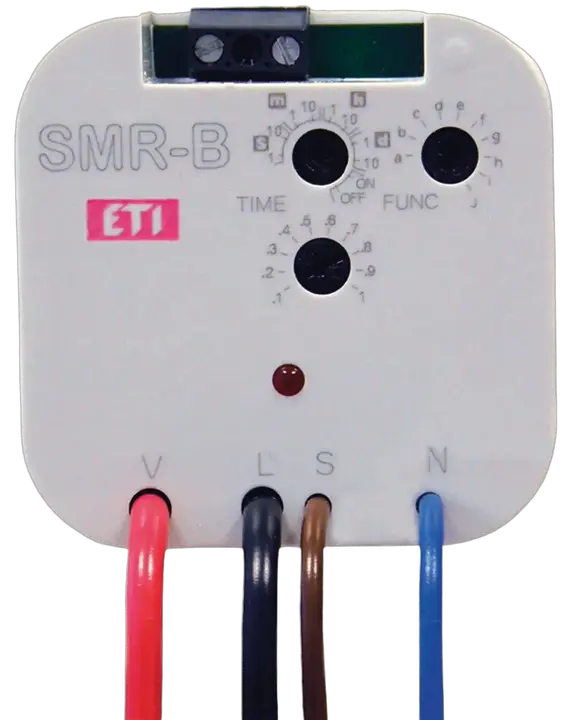

SMR-B Time relay
- ETI Code:
- 002470021
- Height:
- 49 mm
- Width:
- 49 mm
- Category:
- Multifunction relay SMR-T, SMR-H, SMR-B
- Catalogue Group:
- Time relay (Analog)
- Catalogue Subgroup:
- Multifunction relay
- Time range:
- 0.1 s-10 days
- Type description:
- Multifunction relay SMR-T, SMR-H, SMR-B
- Voltage type:
- AC
- Number of contacts:
- 1
- Function:
- Time relay
- Maximum load capacity at AC1:
- 4,000 VA
- Number of Functions:
- 10
- No. of NO contacts:
- 1
- Supply Voltage:
- 230 V
- Rated current:
- 16 A
6 Documents
15 Logistics
Product
- Net weight of the product
- 0.051 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895452218
- Basic packaging weight
- 0.07 kg
- Basic Packaging Dimensions Height
- 102 mm
- Basic Packaging Dimensions Width
- 82 mm
- Basic Packaging Dimensions Depth
- 39 mm
- Basic packaging volume
- 0.326 dm³
Transport Packaging
- Transport packaging quantity
- 14 pcs
- EAN code for a transport packaging
- 3838895452225
- Transport packaging weight
- 0.71 kg
- Transport packaging volume
- 5.2 dm³
- Pallet quantity
- 42,910 pcs
- Customs tariff
- 85364900
18 ETIM
- Width
- 49 mm
- Nominal current
- 16 A
- Function delay-on energization
- Yes
- Voltage type (operating voltage)
- AC
- Function floating contact on energization
- Yes
- Voltage type for actuating
- AC
- Number of outputs, undelayed, normally open contact
- 1
- Depth
- 13.3 mm
- Type of electric connection
- Soldering flag connection
- Function delay on de-energization
- Yes
- Height
- 49 mm
- Function floating contact on de-energization
- Yes
- Rated control supply voltage AC 60 Hz(Min)
- 230 V
- Rated control supply voltage AC 50 Hz(Min)
- 230 V
- Time range(Min)
- 0.1 s
- Rated control supply voltage AC 60 Hz(Max)
- 230 V
- Time range(Max)
- 864,000
- Rated control supply voltage AC 50 Hz(Max)
- 230 V
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
21 Tags
002470021Time relaySMR-BEVE/ETIRELControl equipmentRelaysRelaysMultifunction relayMultifunction relayInternationalAutomation, signaling and control devicesTimers and digital time relays ETIRELVoltage type: ACNumber of contacts: 1Function: Time relayMaximum load capacity at AC1: 4000 VANumber of Functions: 10No. of NO contacts: 1Supply Voltage: 230 V-230 VRated current: 16 A/16 ATime relay Voltage type: AC Number of contacts: 1 Function: Time relay Maximum load capacity at AC1: 4000 VA No. of NO contacts: 1 Supply Voltage: 230 V-230 V Rated current: 16 A/16 A
