002470010

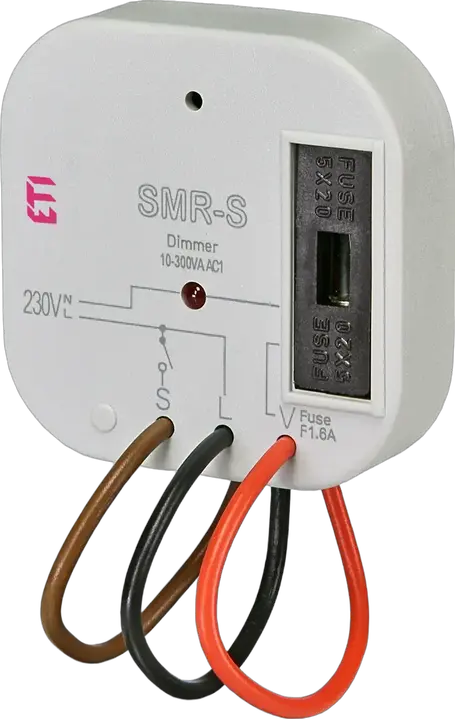

SMR-S Dimming relay
- ETI Code:
- 002470010
- Category:
- Dimmers SMR-S
- Color:
- Grey
- Catalogue Group:
- Dimmers
- Catalogue Subgroup:
- Dimmer
- Type of Installation:
- Flush mounting
- Type description:
- Dimmers SMR-S
- Type of contacts:
- Triac
- Voltage type:
- AC
- Number of contacts:
- 1
- Function:
- Dimmer
- Maximum load capacity at AC1:
- 160 VA
- Supply Voltage:
- 230 V
6 Documents
15 Logistics
Product
- Net weight of the product
- 0.055 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 8594030338353
- Basic packaging weight
- 0.06 kg
- Basic Packaging Dimensions Height
- 102 mm
- Basic Packaging Dimensions Width
- 82 mm
- Basic Packaging Dimensions Depth
- 39 mm
- Basic packaging volume
- 0.326 dm³
Transport Packaging
- Transport packaging quantity
- 14 pcs
- EAN code for a transport packaging
- 3838895231271
- Transport packaging weight
- 0.765 kg
- Transport packaging volume
- 5.26 dm³
- Pallet quantity
- 42,910 pcs
- Customs tariff
- 85364900
18 ETIM
- Type of fastening
- Other
- Device depth
- 13.3 mm
- Assembly arrangement
- Basic element
- Mounting method
- Built-in installation
- Device height
- 49 mm
- Material quality
- Thermoplastic
- Type of load
- Universal
- Halogen free
- Yes
- Serial dimmer
- Yes
- Colour
- Grey
- Device width
- 49 mm
- Applicable with button
- Yes
- Suitable for degree of protection (IP)
- IP30
- Material
- Plastic
- Frequency(Min)
- 50 Hz
- Control voltage(Min)
- 230 V
- Frequency(Max)
- 50
- Control voltage(Max)
- 230 V
ETIM Classification – Version 9.0
