Timers and digital time relays ETIREL

Introduction

Timers and digital time relays are essential components in modern electrical systems, providing automated control and enhanced functionality for various applications. Timers allow for precise time-based control of devices, ensuring actions occur at specific intervals. Digital time relays offer advanced features, including multiple time functions, programmability, and precise control over switching operations.

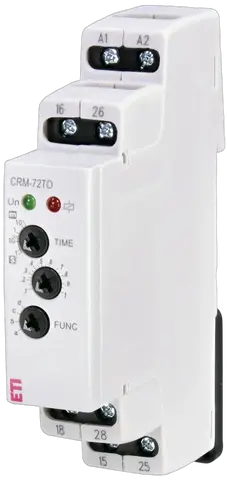

CRM-72TO UNI

Class name: Time relay
Voltage type: AC/DC
Number of contacts: 2
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 2,000 VA
Number of Functions: 4
Supply Voltage: 12-240 V
Rated current: 8 A

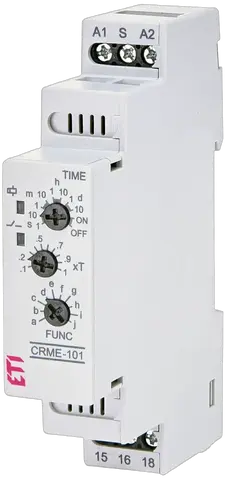

CRME-101

Class name: Time relay
Function: Time relay

CRM-91H UNI

Class name: Time relay
Voltage type: AC/DC
Number of contacts: 1
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Number of Functions: 10
Supply Voltage: 12-240 V
Rated current: 16 A

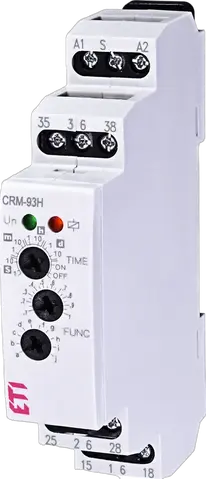

CRM-93H UNI

Class name: Time relay
Voltage type: AC/DC
Number of contacts: 3
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 2,000 VA
Number of Functions: 10
Supply Voltage: 12-240 V
Rated current: 8 A

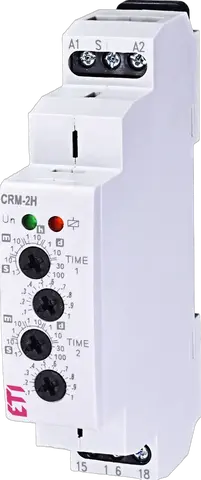

CRM-2H UNI

Class name: Time relay
Voltage type: AC/DC
Number of contacts: 1
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Number of Functions: 2
Supply Voltage: 12-240 V
Rated current: 16 A

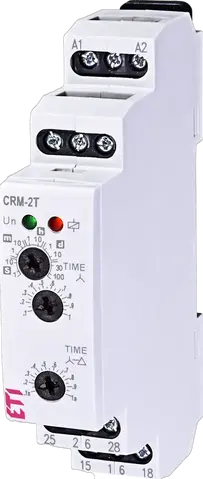

CRM-2T UNI

Class name: Time relay
Voltage type: AC/DC
Number of contacts: 2
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Number of Functions: 1
Supply Voltage: 12-240 V
Rated current: 16 A

CRM-91H 230

Class name: Time relay
Voltage type: AC
Number of contacts: 1
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Number of Functions: 10
Supply Voltage: 230 V
Rated current: 16 A

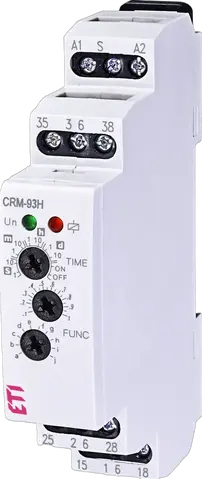

CRM-93H 230

Class name: Time relay
Voltage type: AC
Number of contacts: 3
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 2,000 VA
Number of Functions: 10
Supply Voltage: 230 V
Rated current: 8 A

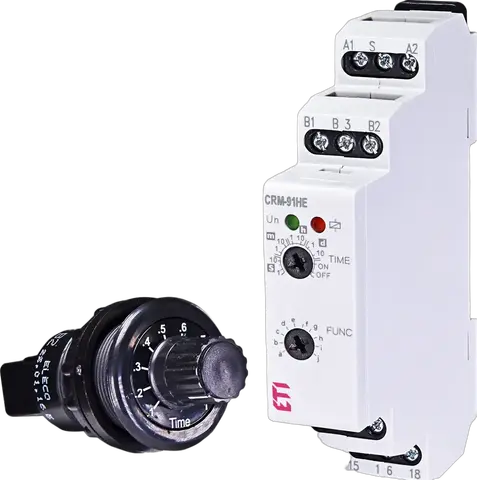

CRM-91HE UNI+PT

Class name: Time relay
Voltage type: AC/DC
Number of contacts: 1
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Number of Functions: 10
Supply Voltage: 12-240 V
Rated current: 16 A

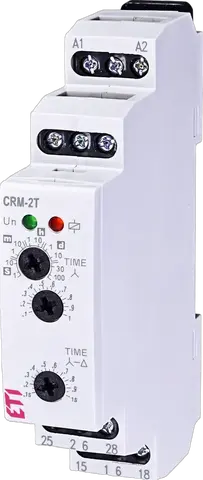

CRM-2T 230V

Class name: Time relay
Voltage type: AC
Number of contacts: 2
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Number of Functions: 1
Supply Voltage: 230 V
Rated current: 16 A

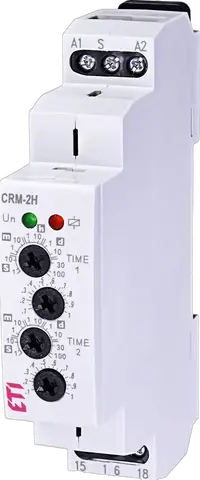

CRM-2H 230V

Class name: Time relay
Voltage type: AC
Number of contacts: 1
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Number of Functions: 2
Supply Voltage: 230 V
Rated current: 16 A

CRM-2 HE UNI

Class name: Time relay
Function: Time relay

SJR-2 UNI

Class name: Time relay
Voltage type: AC/DC
Number of contacts: 2
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Number of Functions: 1
Supply Voltage: 12-240 V
Rated current: 16 A

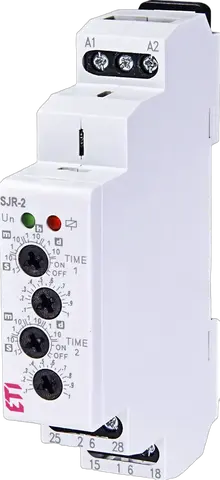

SJR-2 230V

Class name: Time relay
Voltage type: AC
Number of contacts: 2
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Number of Functions: 1
Supply Voltage: 230 V
Rated current: 16 A

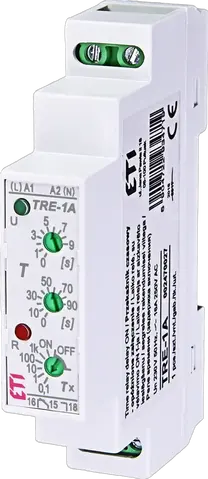

TRE-1A

Class name: Time relay
Voltage type: AC
Number of contacts: 1
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Number of Functions: 1
Supply Voltage: 230 V
Rated current: 16 A

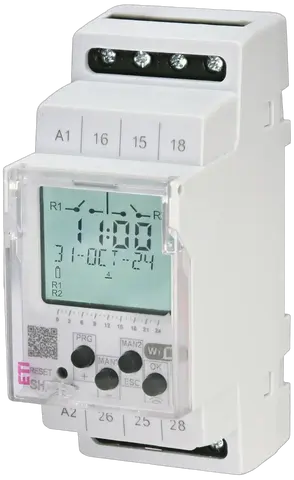

SHT-13/2 UNI

Class name: Time relay - digital
Type of contacts: 1xCO
Voltage type: AC/DC
Number of contacts: 2
Communication: WiFi
No. of CO contacts: 2
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Supply Voltage: 24-230 V
Rated current: 16 A

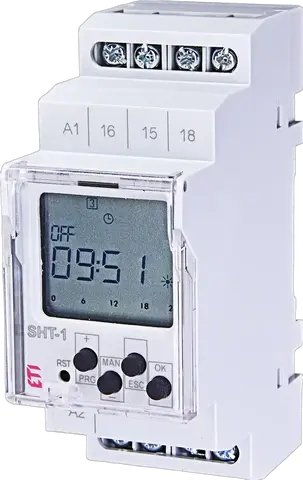

SHT-1 UNI

Class name: Time relay - digital
Type of contacts: 1xCO
Voltage type: AC/DC
Number of contacts: 1
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Supply Voltage: 12-240 V
Rated current: 16 A

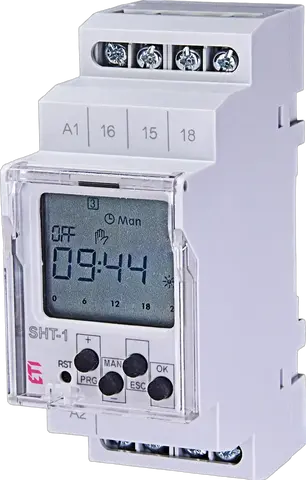

SHT-1 230V

Class name: Time relay - digital
Type of contacts: 1xCO
Voltage type: AC
Number of contacts: 1
No. of CO contacts: 1
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Supply Voltage: 230 V
Rated current: 16 A

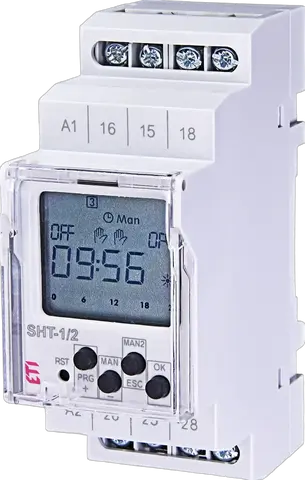

SHT-1/2 UNI

Class name: Time relay - digital
Type of contacts: 1xCO
Voltage type: AC/DC
Number of contacts: 2
No. of CO contacts: 2
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Supply Voltage: 12-240 V
Rated current: 16 A

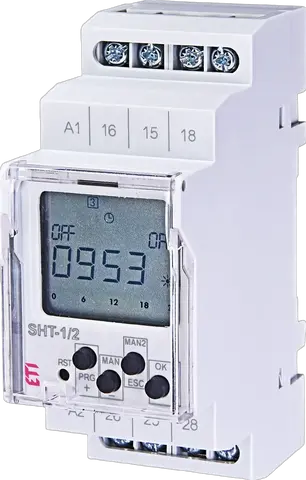

SHT-1/2 230V

Class name: Time relay - digital
Type of contacts: 1xCO
Voltage type: AC
Number of contacts: 2
No. of CO contacts: 2
Function: Time relay
Maximum load capacity at AC1: 4,000 VA
Supply Voltage: 230 V
Rated current: 16 A
