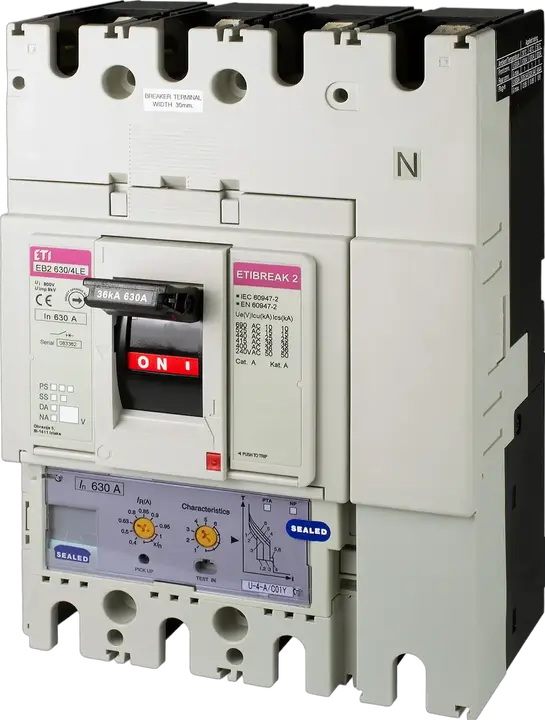

* EB2 400/4LCD 250A 4p APGNSC Molded Case Circuit Breaker
- ETI Code:
- 004672291
- Short circuit capacity:
- 50 kA
- Rated current:
- 250 A
- Number of poles:
- 4
- Catalogue Group:
- EB2
- Frame Size:
- 250A
5 Documents
11 Logistics
Product
- Net weight of the product
- 5.7 kg
- Net width
- 185 mm
- Net height
- 260 mm
- Net depth
- 145 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895703815
- Transport packaging weight
- 5.7 kg
- Transport packaging volume
- 9 dm³
- Pallet quantity
- 140 pcs
- Customs tariff
- 85362090
16 ETIM
- Motor drive optional
- Yes
- Rated permanent current Iu
- 250 A
- Degree of protection (IP)
- IP20
- Type of control element
- Rocker
- Integrated earth fault protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Number of poles
- 4
- Device construction
- Built-in device fixed built-in technique
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 50 kA
- With switched-off indicator
- Yes
- Overload release current setting(Min)
- 100 A
- Adjustment range short-term delayed short-circuit release(Min)
- 250 A
- Adjustment range undelayed short-circuit release(Min)
- 1,400 A
- Adjustment range short-term delayed short-circuit release(Max)
- 2,500 A
- Overload release current setting(Max)
- 250 A
- Adjustment range undelayed short-circuit release(Max)
- 3,250 A
