Circuit breakers EB2 Series 20-1600A - Products & Solutions

EB2 125/3L 20A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 20 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

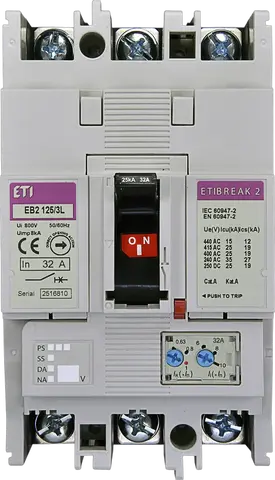

EB2 125/3L 32A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 32 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

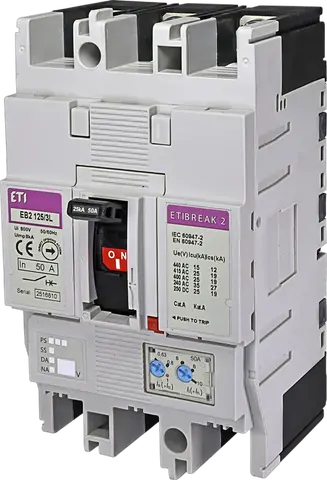

EB2 125/3L 50A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 50 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/3L 63A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 63 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

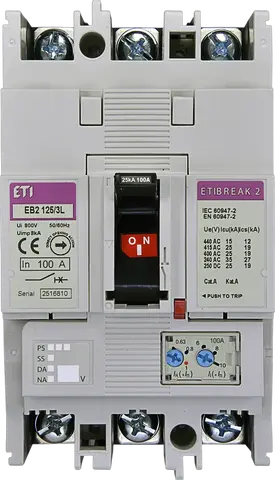

EB2 125/3L 100A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 100 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/3L 125A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 125 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-10
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/4L 20A 4p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 20 A
Number of poles: 4
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/4L 32A 4p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 32 A
Number of poles: 4
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/4L 50A 4p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 50 A
Number of poles: 4
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/4L 63A 4p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 63 A
Number of poles: 4
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/4L 100A 4p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 100 A
Number of poles: 4
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/4L 125A 4p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 25/19 kA
Rated current: 125 A
Number of poles: 4
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-10
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

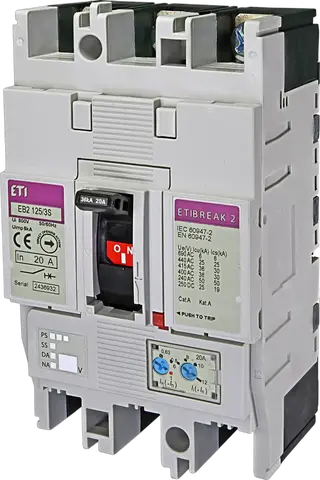

EB2 125/3S 20A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 36 kA
Rated current: 20 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 36 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/3S 32A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 36 kA
Rated current: 32 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 36 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/3S 50A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 36 kA
Rated current: 50 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 36 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

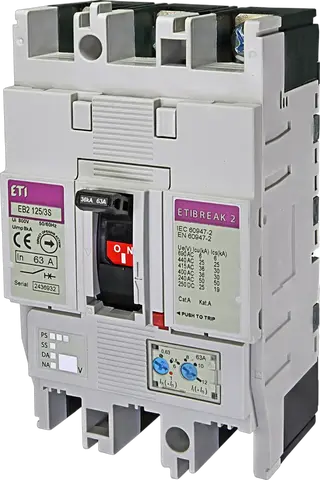

EB2 125/3S 63A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 36 kA
Rated current: 63 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 36 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

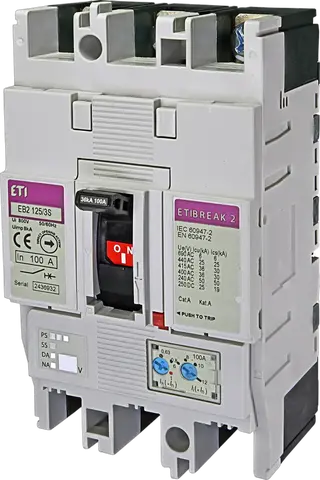

EB2 125/3S 100A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 36 kA
Rated current: 100 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 36 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

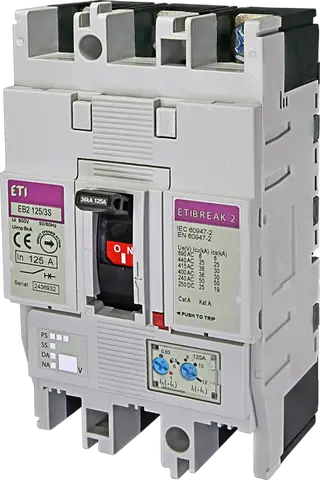

EB2 125/3S 125A 3p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 36 kA
Rated current: 125 A
Number of poles: 3
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 36 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-10
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/4S 20A 4p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 36 kA
Rated current: 20 A
Number of poles: 4
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 36 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

EB2 125/4S 32A 4p

Class name: Molded Case Circuit Breaker
Short circuit capacity: 36 kA
Rated current: 32 A
Number of poles: 4
Connection type: front connection
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 36 kA
Rated operational voltage (AC): 690 V
Rated operational voltage (DC): 250 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: 6-12
Adjustable or fixed: adjustable
Standards: 60,947
Function: MCCB
Catalogue Group: EB2
Frame Size: 125A

Showing top picks

Cookies Save settings

Compare Items

Product history

Some title of document or something 0

Some title of document or something 1

Some title of document or something 2

Some title of document or something 3

Some title of document or something 4

Some title of document or something 5

Some title of document or something 6

Some title of document or something 7

Some title of document or something 8

Some title of document or something 9

Some title of document or something 10

Some title of document or something 11

Some title of document or something 12

Some title of document or something 13

Some title of document or something 14

Some title of document or something 15

Some title of document or something 16

Some title of document or something 17

Some title of document or something 18

Some title of document or something 19

Cookies
