004660067

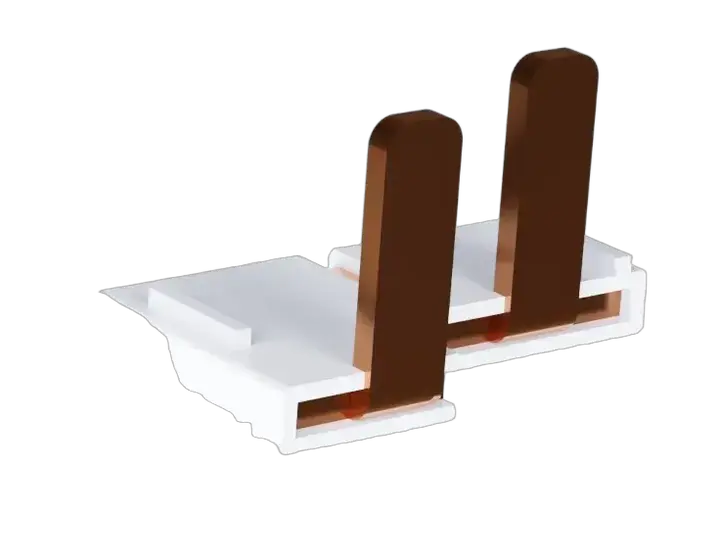

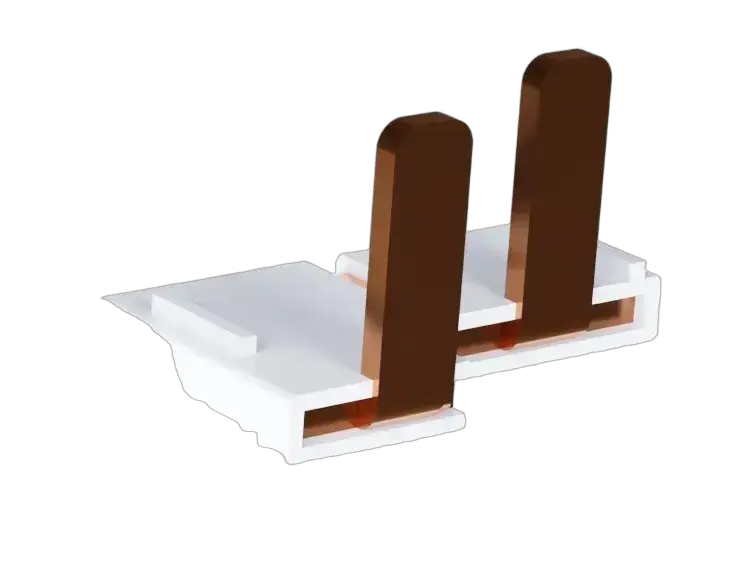

LSV-B1 Switch disconnector PV
- ETI Code:
- 004660067
- Catalogue Group:
- Rotary cam switch
- Function:
- PV Switch disconnectors
5 Documents
15 Logistics
Product
- EAN code for a single product
- 3838400171085
- Net weight of the product
- 6.6 g
- Net width
- 30 mm
- Net height
- 17.2 mm
- Net depth
- 17.72 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 100 pcs
- EAN code for a transport packaging
- 3838895637707
- Transport packaging weight
- 0.66 kg
- Transport Packaging Dimensions Height
- 172 mm
- Transport Packaging Dimensions Width
- 30 mm
- Transport Packaging Dimensions Depth
- 177.2 mm
- Transport packaging volume
- 0.914 dm³
- Pallet quantity
- 79,200 pcs
- Customs tariff
- 85365080
1 ETIM
- Type of accessory/spare part
- Connector
ETIM Classification – Version 9.0
