004660063

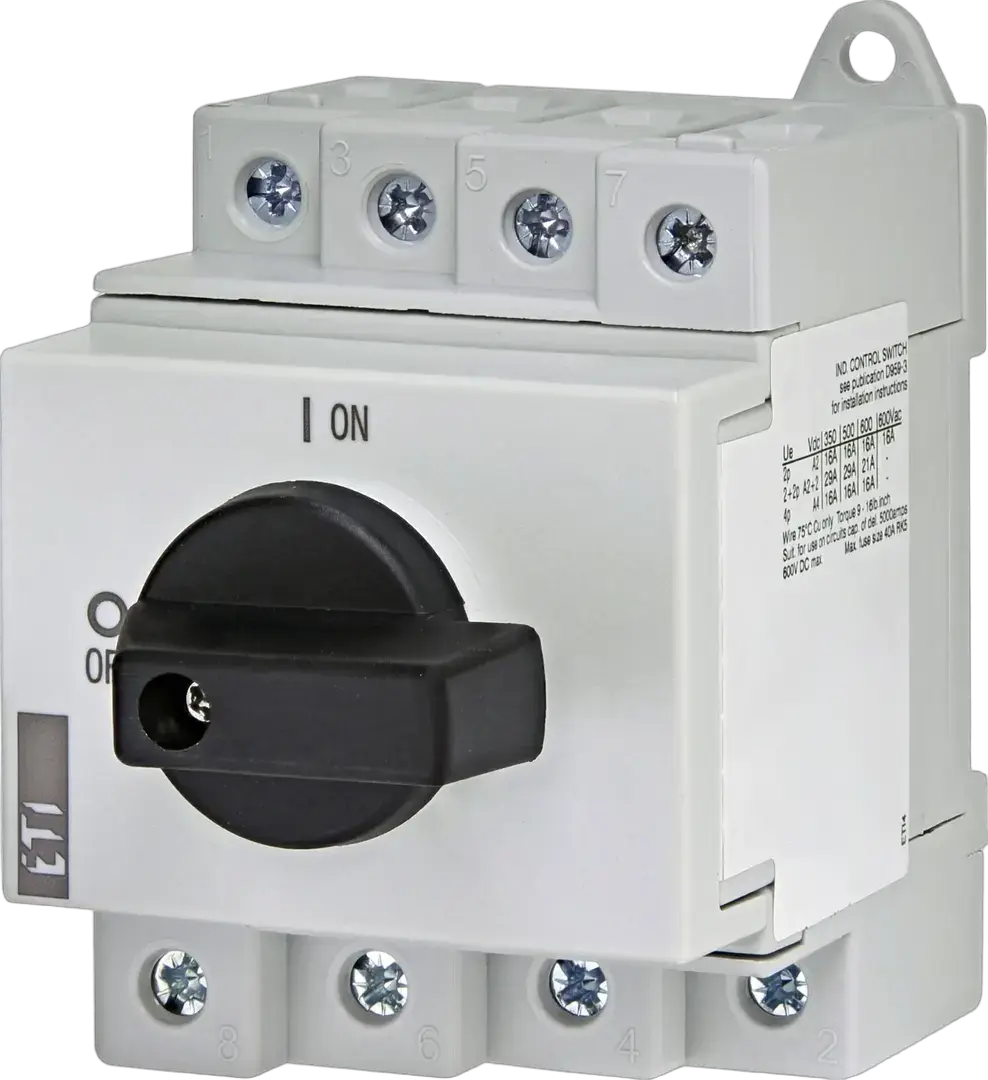

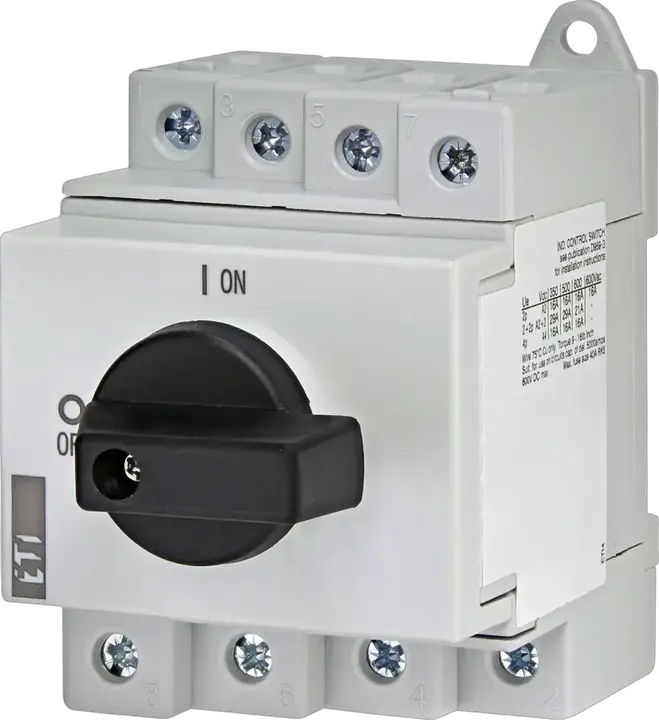

LS16 SMA A4 Switch disconnector PV
- ETI Code:
- 004660063
- Catalogue Group:
- Rotary cam switch
- Type of Installation:
- TH 35
- Function:
- PV Switch disconnectors, 0-1
- Number of poles:
- 4
- Max. rated operational voltage Ur:
- 1,500 V
- Thermal current Ith:
- 16 A
- Rated operational current Ie DC-21 B at 1000V DC:
- 16 A
- Type description:
- DIN-rail mounted
21 Logistics
Product
- Net weight of the product
- 0.15 kg
- Net width
- 60 mm
- Net height
- 95 mm
- Net depth
- 89.7 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895567622
- Basic packaging weight
- 0.24 kg
- Basic Packaging Dimensions Height
- 80 mm
- Basic Packaging Dimensions Width
- 95 mm
- Basic Packaging Dimensions Depth
- 90 mm
- Basic packaging volume
- 0.684 dm³
Transport Packaging
- Transport packaging quantity
- 40 pcs
- EAN code for a transport packaging
- 3838895712886
- Transport packaging weight
- 10.28 kg
- Transport Packaging Dimensions Height
- 340 mm
- Transport Packaging Dimensions Width
- 245 mm
- Transport Packaging Dimensions Depth
- 440 mm
- Transport packaging volume
- 36.652 dm³
- Pallet quantity
- 2,560 pcs
- Customs tariff
- 85365080
16 ETIM
- Rated permanent current at AC-21, 400 V
- 16 A
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Max. rated operation voltage Ue AC
- 440 V
- Rated permanent current Iu
- 16 A
- Type of control element
- Turn button
- Conditioned rated short-circuit current Iq
- 5 kA
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
- Number of poles
- 4
- Device construction
- Built-in device fixed built-in technique
- Colour control element
- Black
- Suitable for distribution board installation
- Yes
- Version as main switch
- Yes
- Rated operating voltage(Min)
- 300 V
- Rated operating voltage(Max)
- 1,000 V
ETIM Classification – Version 9.0
