004482069

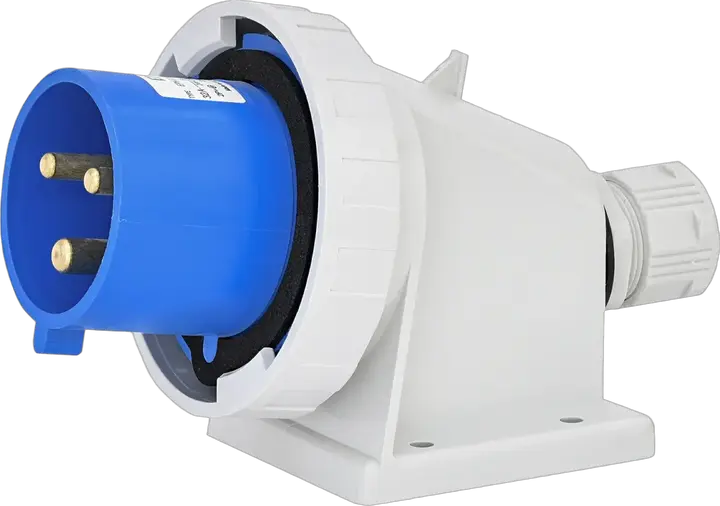

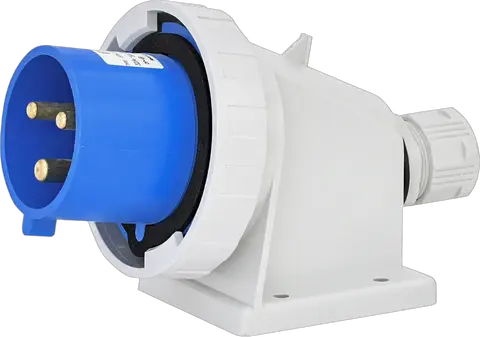

EPH 3232 CEE Plug
- ETI Code:
- 004482069
- Function:
- Wall plug IP67
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Catalogue Group:
- Sockets IP67
- Rated current:
- 32 A
- Type: socket/plug:
- Wall plug
- Number of poles:
- 2+PE
- IP rating:
- IP67
4 Documents
12 Logistics
Product
- EAN code for a single product
- 3838895674511
- Net weight of the product
- 0.28 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895674528
- Transport packaging weight
- 3.3 kg
- Transport Packaging Dimensions Height
- 300 mm
- Transport Packaging Dimensions Width
- 300 mm
- Transport Packaging Dimensions Depth
- 220 mm
- Transport packaging volume
- 19.8 dm³
- Pallet quantity
- 384 pcs
- Customs tariff
- 85366990
9 ETIM
- Degree of protection (IP)
- IP67
- Voltage according to EN 60309-2
- 230 V (50+60 Hz) blue
- Number of poles
- 4
- IEC-amperage
- 16 A
- Insert direction
- Straight
- Clock hour position
- 6 h
- Connection system
- Screwed terminal
- Identification colour
- Red
- Material
- Plastic
ETIM Classification – Version 9.0
