004482007

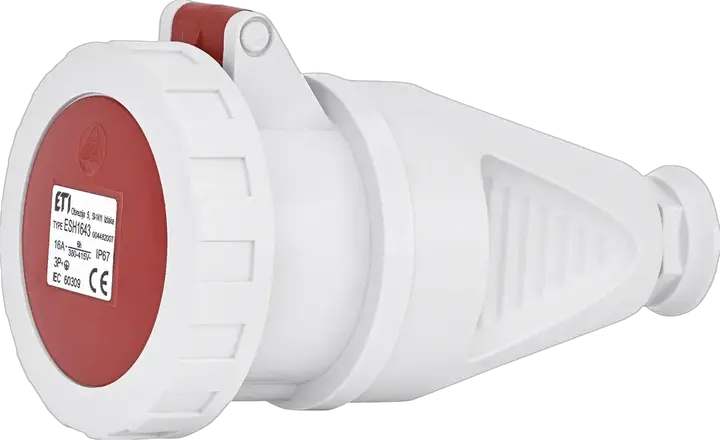

ESH 1643 CEE Socket
- ETI Code:
- 004482007
- Function:
- Connecting socket IP67
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Catalogue Group:
- Sockets IP67
- Rated current:
- 16 A
- Type: socket/plug:
- Connecting sockets
- Number of poles:
- 3+PE
- IP rating:
- IP67
4 Documents
15 Logistics
Product
- Net weight of the product
- 0.189 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895673279
- Basic packaging weight
- 0.19 kg
- Basic packaging volume
- 0.78 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895673286
- Transport packaging weight
- 1.9 kg
- Transport Packaging Dimensions Height
- 165 mm
- Transport Packaging Dimensions Width
- 315 mm
- Transport Packaging Dimensions Depth
- 150 mm
- Transport packaging volume
- 7.796 dm³
- Pallet quantity
- 1,280 pcs
- Customs tariff
- 85366990
10 ETIM
- Degree of protection (IP)
- IP67
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Cable entry
- Gland nut
- Number of poles
- 4
- IEC-amperage
- 16 A
- Insert direction
- Straight
- Clock hour position
- 6 h
- Connection system
- Screwed terminal
- Identification colour
- Red
- Material
- Plastic
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
