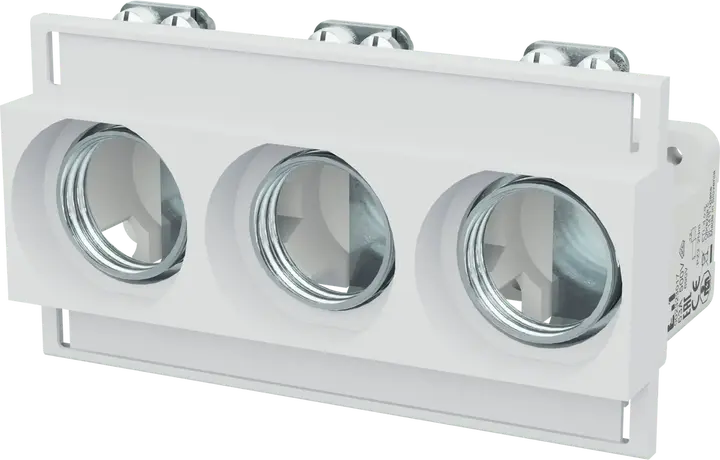

DIII E33 63A EZV 3p+ZP Fuse - base
- ETI Code:
- 002323017
- To use with:
- D fuse-links
- Rated DC voltage:
- 500 V
- Product group:
- LV-fuse base
- Catalogue Group:
- LV-fuse base
- Standards:
- IEC60269
- Application:
- Residential and industrial installation
- Type description:
- EZV/3
- Size:
- DIII
- Number of poles:
- 3
- Rated current:
- 63 A
- Rated AC voltage:
- 500 V
- Type of Installation:
- Base plate mounting
19 Logistics
Product
- EAN code for a single product
- 3838400029614
- Net weight of the product
- 530 g
- Net width
- 148 mm
- Net height
- 82 mm
- Net depth
- 56.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 6 pcs
- EAN code for a basic packaging
- 3838895002550
- Basic packaging weight
- 3.29 kg
- Basic packaging volume
- 5.2 dm³
Transport Packaging
- Transport packaging quantity
- 24 pcs
- EAN code for a transport packaging
- 3838895717645
- Transport packaging weight
- 13.961 kg
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.37 m
- Transport Packaging Dimensions Depth
- 0.375 m
- Transport packaging volume
- 0.03 m³
- Pallet quantity
- 720 pcs
- Customs tariff
- 85389099
7 ETIM
- Model
- Fitted screw
- Mounting method
- Screw mounting
- Construction size
- DIII
- Number of poles
- 3
- Rated voltage
- 500 V
- Rated current
- 63 A
- Material
- Porcelain
