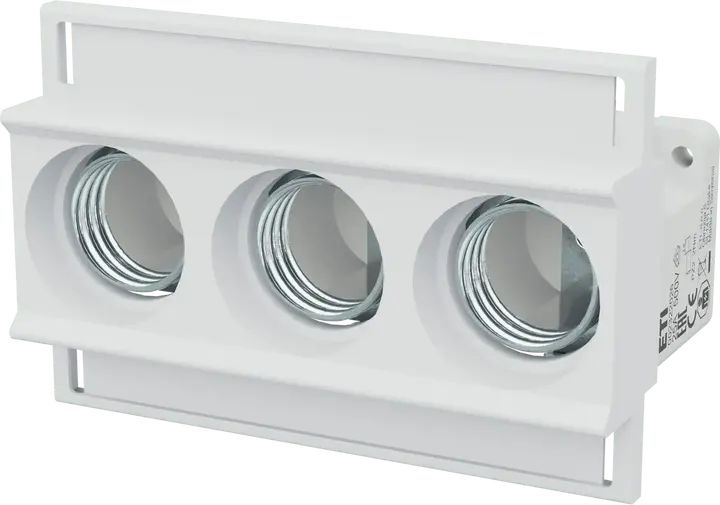

DII E27 25A EZV 3p+ZP Fuse - base
- ETI Code:
- 002322026
- To use with:
- D fuse-links
- Rated DC voltage:
- 500 V
- Product group:
- LV-fuse base
- Catalogue Group:
- LV-fuse base
- Standards:
- IEC60269
- Application:
- Residential and industrial installation
- Type description:
- EZV/3
- Size:
- DII
- Number of poles:
- 3
- Rated current:
- 25 A
- Rated AC voltage:
- 500 V
- Type of Installation:
- Base plate mounting
22 Logistics
Product
- EAN code for a single product
- 3838400029607
- Net weight of the product
- 394 g
- Net width
- 121 mm
- Net height
- 80 mm
- Net depth
- 58.99 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 4 pcs
- EAN code for a basic packaging
- 3838895005230
- Basic packaging weight
- 1.65 kg
- Basic Packaging Dimensions Height
- 65 mm
- Basic Packaging Dimensions Width
- 259 mm
- Basic Packaging Dimensions Depth
- 138 mm
- Basic packaging volume
- 2.323 dm³
Transport Packaging
- Transport packaging quantity
- 36 pcs
- EAN code for a transport packaging
- 3838895724216
- Transport packaging weight
- 15.648 kg
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.37 m
- Transport Packaging Dimensions Depth
- 0.375 m
- Transport packaging volume
- 0.03 m³
- Pallet quantity
- 864 pcs
- Customs tariff
- 85389099
7 ETIM
- Model
- Fitted screw
- Mounting method
- Screw mounting
- Construction size
- DII
- Number of poles
- 3
- Rated voltage
- 500 V
- Rated current
- 25 A
- Material
- Porcelain
