001344018

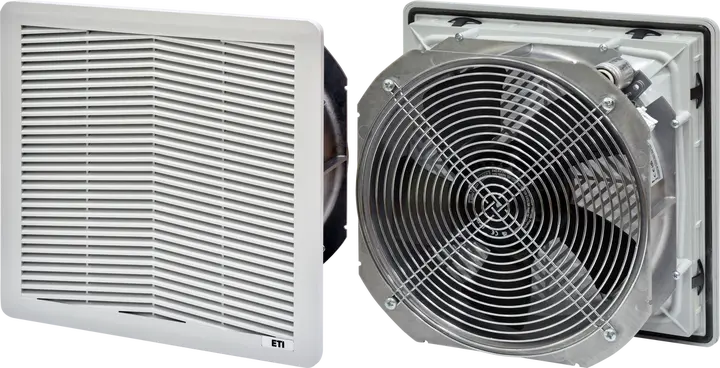

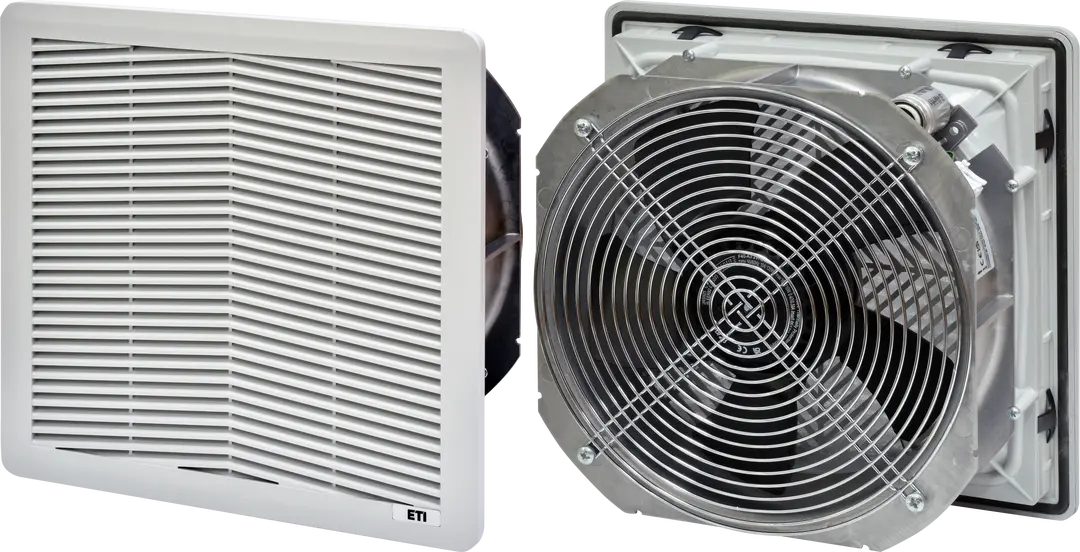

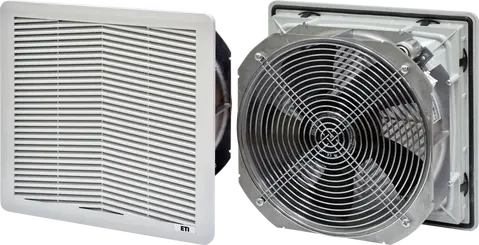

EF-325-900-230V Filterfan
- ETI Code:
- 001344018
- Working Temperature:
- -10-55 °C
- Approvals:
- CE
- Mounting wall thickness:
- 1.3-3.7 mm
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Rated current:
- 0.53 A
- Color:
- RAL 7035
- Rated power:
- 0.12 kW
- Airflow with exhaust filter:
- 630 m³/h
- Max static pressure:
- 220 Pa
- Filter Class:
- G2
- Width:
- 325 mm
- Storage Temperature:
- -30-70 °C
- IP rating:
- IP51
- Max Airflow:
- 900 m³/h
- Fan noise:
- 72 dB
- Height:
- 325 mm
- Connection type:
- Terminal block
- Depth:
- 158.5 mm
- Mounting cut-out:
- 291 mm
13 Logistics
Product
- Net weight of the product
- 4.7 kg
- Net width
- 325.8 mm
- Net height
- 325.9 mm
- Net depth
- 158.14 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400103772
- Basic packaging weight
- 4.7 kg
- Basic Packaging Dimensions Height
- 335 mm
- Basic Packaging Dimensions Width
- 335 mm
- Basic Packaging Dimensions Depth
- 170 mm
- Basic packaging volume
- 19.078 dm³
Transport Packaging
- Customs tariff
- 84213925
