Circuit breakers with residual protection - Products & Solutions

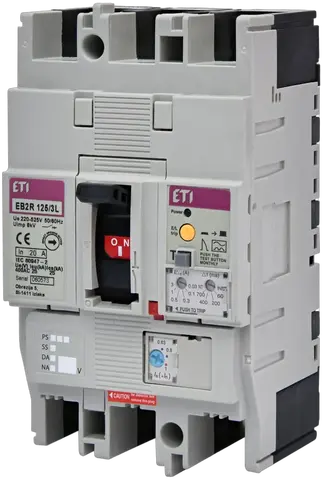

EB2R 125/3L 20A 3P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 20 A
Number of poles: 3
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

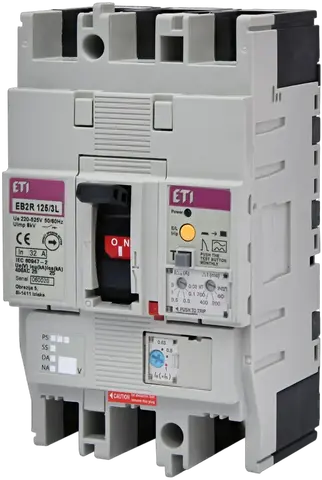

EB2R 125/3L 32A 3P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 32 A
Number of poles: 3
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

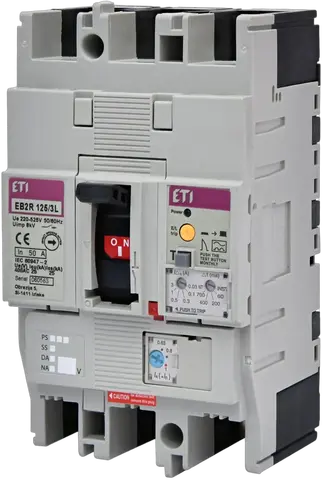

EB2R 125/3L 50A 3P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 50 A
Number of poles: 3
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

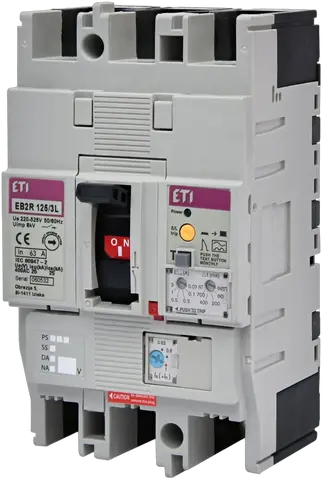

EB2R 125/3L 63A 3P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 63 A
Number of poles: 3
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

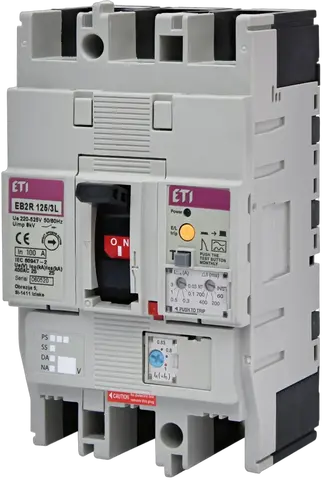

EB2R 125/3L 100A 3P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 100 A
Number of poles: 3
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

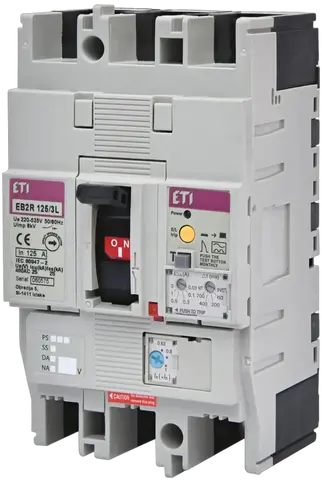

EB2R 125/3L 125A 3P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 125 A
Number of poles: 3
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

EB2R 125/4L 20A 4P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 20 A
Number of poles: 4
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

EB2R 125/4L 32A 4P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 32 A
Number of poles: 4
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

EB2R 125/4L 50A 4P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 50 A
Number of poles: 4
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

EB2R 125/4L 63A 4P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 63 A
Number of poles: 4
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

EB2R 125/4L 100A 4P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 100 A
Number of poles: 4
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

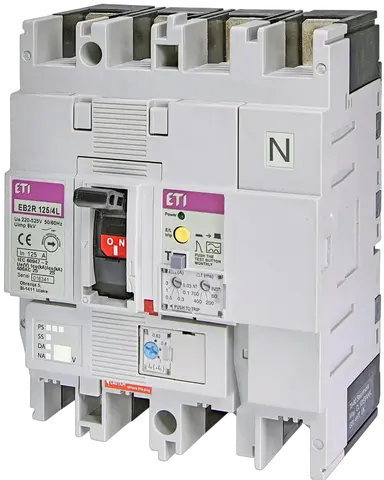

EB2R 125/4L 125A 4P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 125 A
Number of poles: 4
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

EB2R 250/3L 160A 3P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 160 A
Number of poles: 3
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 250A
Short circuit capacity: 25/19 kA

EB2R 250/3L 250A 3P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 250 A
Number of poles: 3
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 250A
Short circuit capacity: 25/19 kA

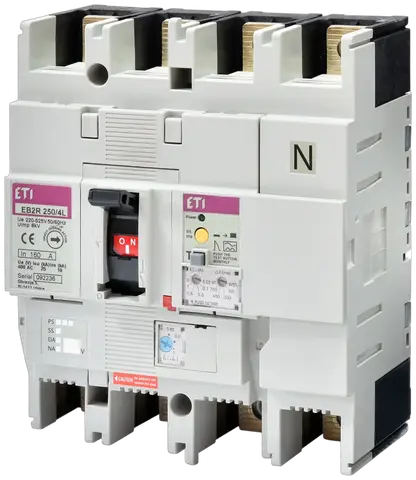

EB2R 250/4L 160A 4P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 160 A
Number of poles: 4
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 250A
Short circuit capacity: 25/19 kA

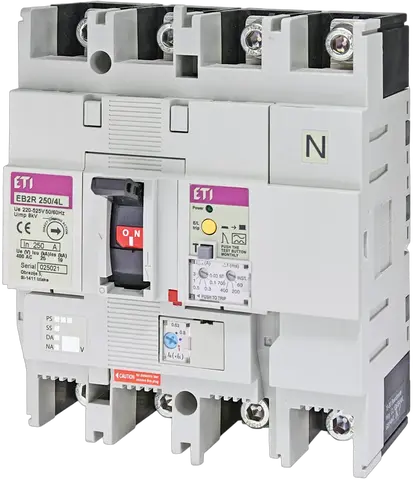

EB2R 250/4L 250A 4P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 250 A
Number of poles: 4
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 250A
Short circuit capacity: 25/19 kA

EB2R-M 125/4L 100A 4P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 100 A
Number of poles: 4
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 125A
Short circuit capacity: 25/19 kA

EB2R-M 250/3L 160A 3P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 160 A
Number of poles: 3
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 250A
Short circuit capacity: 25/19 kA

EB2R-M 250/3L 250A 3P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 250 A
Number of poles: 3
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 250A
Short circuit capacity: 25/19 kA

EB2R-M 250/4L 160A 4P

Class name: Molded Case Circuit Breaker
Function: MCCB + RCD
Rated current: 160 A
Number of poles: 4
Connection type: front connection
Standards: 60,947
Rated impulse withstand voltage Uimp: 8 kV
Rated short-circuit breaking capacity at 415V Icu/Ics: 25/19 kA
Rated operational voltage (AC): 525 V
Rated Insulation Voltage: 800 V
Thermal Adjustment: 0,63-1
Magnetic adjustment: fixed
Adjustable or fixed: adjustable
Frame Size: 250A
Short circuit capacity: 25/19 kA
