002159505
Obsolete

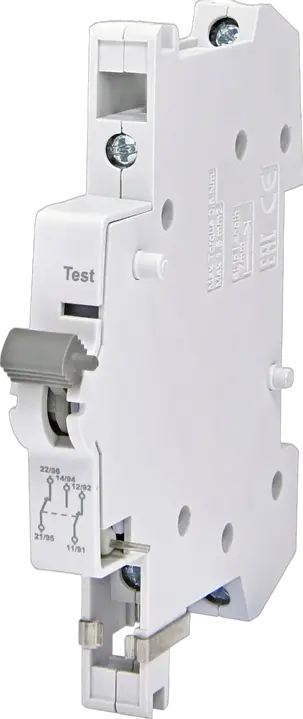

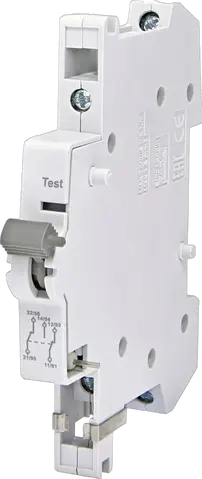

*PS/SS ETIMAT P10 Aux/Sig switch
- ETI Code:
- 002159505
- Function accessories:
- Auxiliary switch
- Application:
- EN 62019
- Function:
- Auxiliary switch
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- No. of NC contacts:
- 1
- No. of NO contacts:
- 1
- Standards:
- EN 62019
- To use with:
- ETIMAT P10
21 Logistics
Product
- Net weight of the product
- 35 g
- Net width
- 13.5 mm
- Net height
- 88 mm
- Net depth
- 72.39 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895839866
- Basic packaging weight
- 0.043 kg
- Basic Packaging Dimensions Height
- 75 mm
- Basic Packaging Dimensions Width
- 91 mm
- Basic Packaging Dimensions Depth
- 20 mm
- Basic packaging volume
- 0.136 dm³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895839873
- Transport packaging weight
- 0.586 kg
- Transport Packaging Dimensions Height
- 0.081 m
- Transport Packaging Dimensions Width
- 0.123 m
- Transport Packaging Dimensions Depth
- 0.216 m
- Transport packaging volume
- 0.002 m³
- Pallet quantity
- 2,880 pcs
- Customs tariff
- 85365080
10 ETIM
- Number of fault-signal switches
- 1
- Voltage type
- AC/DC
- Number of contacts as normally closed contact
- 1
- Device fitting
- Miniature circuit breaker (MCB)
- Suitable for max. number of poles main contact unit (total)
- 4
- Rated switch current
- 6 A
- Rated voltage
- 230 V
- Suitable for max. current main contact unit
- 63 A
- Function
- Auxiliary switch
- Number of contacts as change-over contact
- 1
ETIM Classification – Version 9.0
