003903225

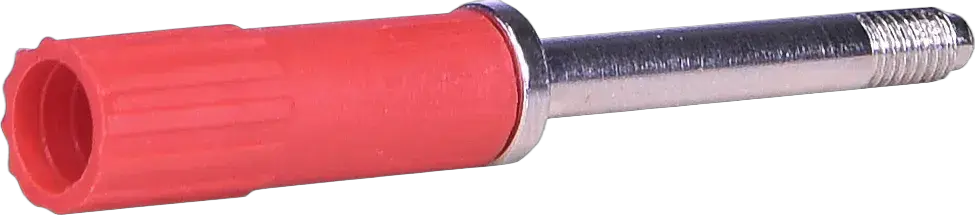

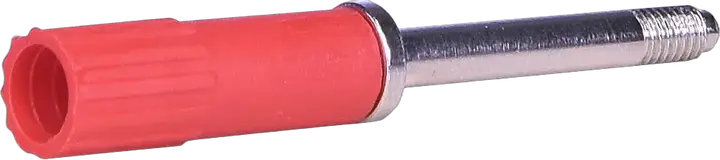

ESC-PSD/P Line-up terminal
- ETI Code:
- 003903225
- To use with:
- ESC-SCB.6
- Catalogue Group:
- ES Screw Type Terminal Blocks
15 Logistics
Product
- EAN code for a single product
- 3838895861249
- Net weight of the product
- 0.004 kg
- Net width
- 7.2 mm
- Net height
- 7.2 mm
- Net depth
- 49 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 50 pcs
- EAN code for a transport packaging
- 3838895830801
- Transport packaging weight
- 0.205 kg
- Transport Packaging Dimensions Height
- 10 mm
- Transport Packaging Dimensions Width
- 80 mm
- Transport Packaging Dimensions Depth
- 150 mm
- Transport packaging volume
- 0.12 dm³
- Pallet quantity
- 146,300 pcs
- Customs tariff
- 85389099
12 ETIM
- Tackable
- Yes
- Number of poles
- 1
- Rated voltage
- 800 V
- Type of electric connection
- Plug-in connection
- Connectable conductor cross section solid-core(Min)
- 0.5 mm²
- Connectable conductor cross section multi-wired(Min)
- 0.5 mm²
- Connectable conductor cross section fine-strand with cable end sleeve(Min)
- 0.5 mm²
- Connectable conductor cross section fine-strand without cable end sleeve(Min)
- 0.5 mm²
- Connectable conductor cross section solid-core(Max)
- 10 mm²
- Connectable conductor cross section fine-strand without cable end sleeve(Max)
- 10 mm²
- Connectable conductor cross section multi-wired(Max)
- 10 mm²
- Connectable conductor cross section fine-strand with cable end sleeve(Max)
- 6 mm²
ETIM Classification – Version 9.0
