004483308

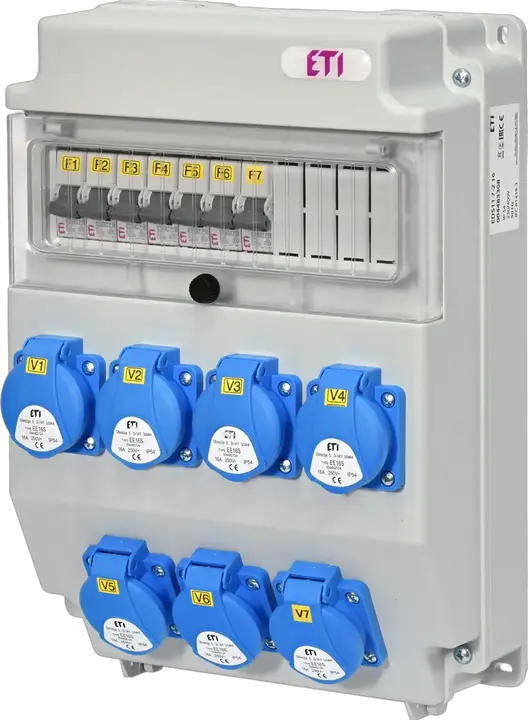

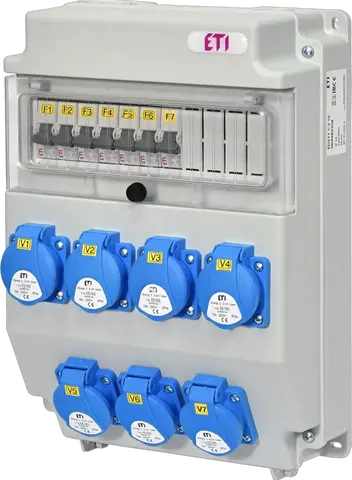

EDS11 7-2/0-5 16 CEE Socket
- ETI Code:
- 004483308
- Function:
- Industrial distribution boxes
- Rated AC voltage:
- 250 V
- Rated DC voltage:
- 250 V
- Rated current:
- 16 A
- Type: socket/plug:
- 7xSCHUKO
- Number of modules:
- 11
- IP rating:
- IP54
- Number of MCBs applied:
- 7xC16/1
- Additional devices:
- with switch
5 Documents
11 Logistics
Product
- Net weight of the product
- 0.166 kg
- Net width
- 244 mm
- Net height
- 354.9 mm
- Net depth
- 131.17 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895837312
- Transport packaging weight
- 2 kg
- Transport packaging volume
- 13 dm³
- Pallet quantity
- 60 pcs
- Customs tariff
- 85366990
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
14 Tags
004483308CEE SocketEDS11 7-2/0-5 16UnassignedInternationalIndustrial plugs, sockets and industrial distribution boxes ETICEEIndustrial distribution boxes EDSType: socket/plug: 7xSCHUKONumber of modules: 11IP rating: IP54Additional devices: with switchNumber of MCBs applied: 7xC16/1Rated current: 16 A/16 ACEE Socket Type: socket/plug: 7xSCHUKO Rated current: 16 A/16 A Type: socket/plug: 7xSCHUKO Number of modules: 11 IP rating: IP54 IP rating: IP54
