004132029

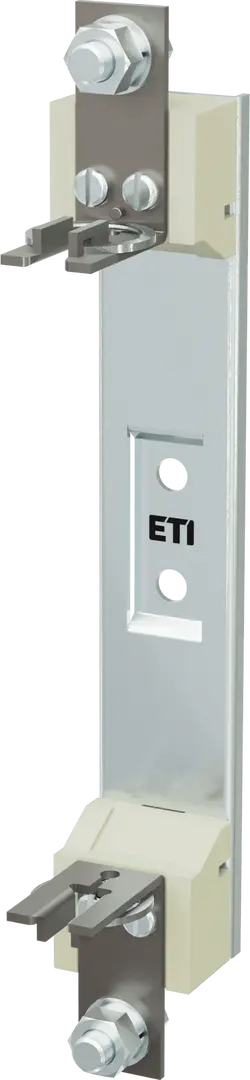

PK01XL-140 M8-M8 1p 1500V Fuse - base
- ETI Code:
- 004132029
- Type description:
- PK
- Size:
- NH01XL
- Number of poles:
- 1
- Rated current:
- 160 A
- Rated AC voltage:
- 1500 V
- Rated DC voltage:
- 1500 V
- Type of Installation:
- Base plate mounting
- Standards:
- IEC 60269
- Max Permissable Power Dissipation per Fuse Link:
- 12 W
5 Documents
12 Logistics
Product
- Net weight of the product
- 300 g
- Net width
- 33.7 mm
- Net height
- 61.5 mm
- Net depth
- 233 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 4 pcs
Transport Packaging
- Transport packaging quantity
- 4 pcs
- EAN code for a transport packaging
- 3838400110985
- Transport packaging weight
- 1.33 kg
- Transport packaging volume
- 3.82 dm³
- Pallet quantity
- 96 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- Other
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 160 A
ETIM Classification – Version 9.0
