CH22x58 SRF25-I/400V Fuse link

ETI Code:: 002646010
Product group:: Special purpose fuses
Product subgroup:: SRF
Catalogue Group:: Special purpose fuses
Catalogue Subgroup:: TVSS Protection Fuse - SRF
Type description:: CH
Fuse type:: CH
Size:: 22x58
Overvoltage Category:: I
Surge Rating for SRF Fuse:: 25,000 A
Rated AC voltage:: 400 V
Breaking capacity AC:: 50 kA
Application:: These fuses are intended for installation in series with TVSS devices
Operating joule integral (A2s):: 504,300
Prearcing joule integral (A2s):: 322,700
Standards:: 61463-11

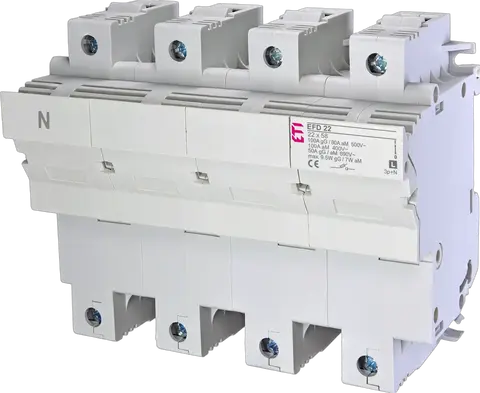

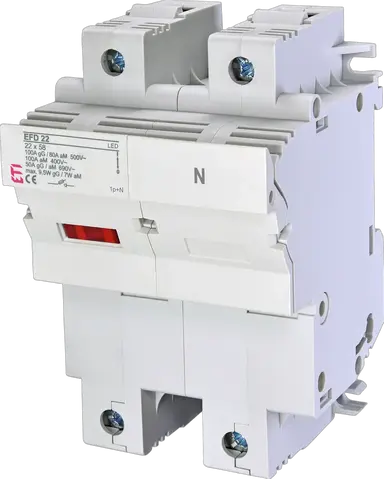

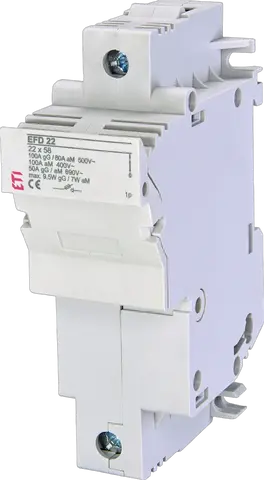

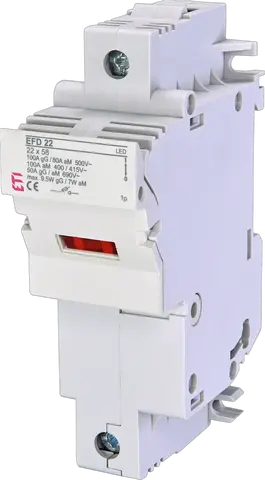

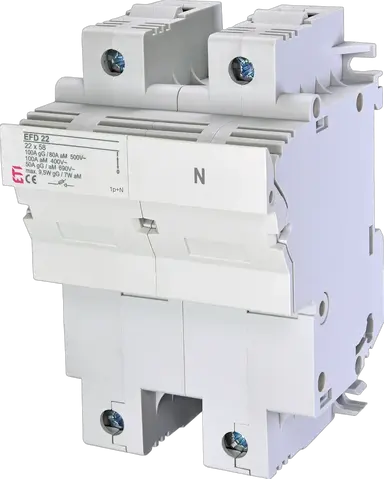

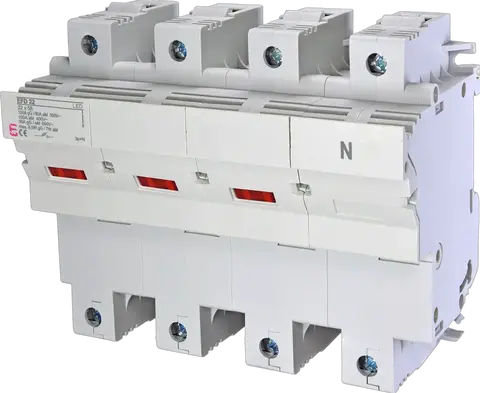

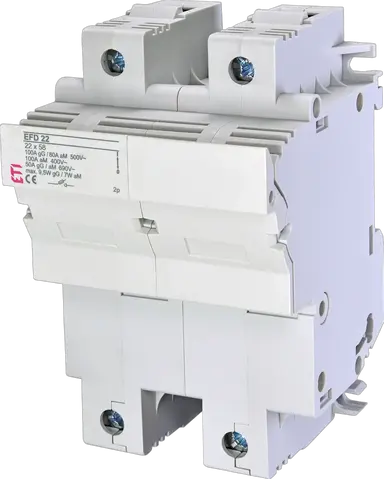

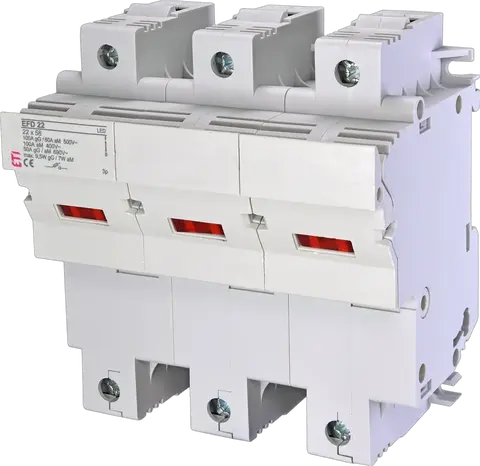

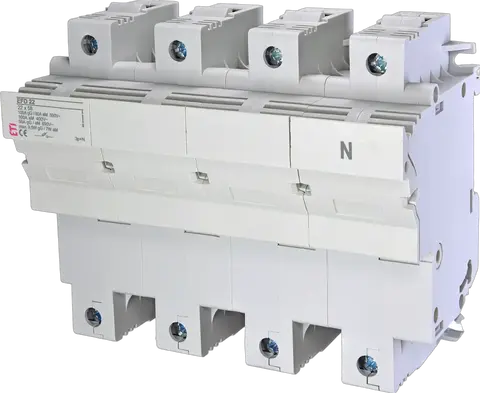

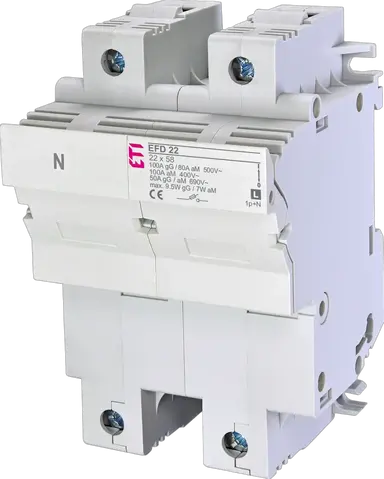

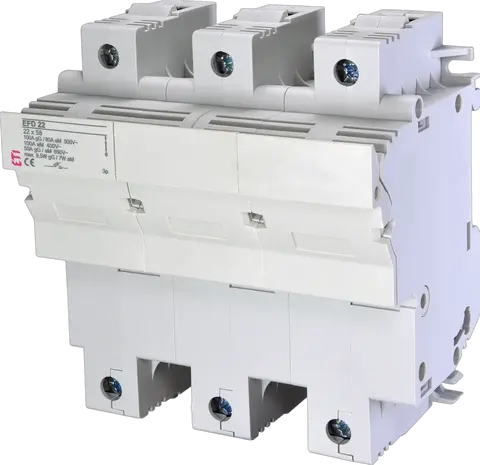

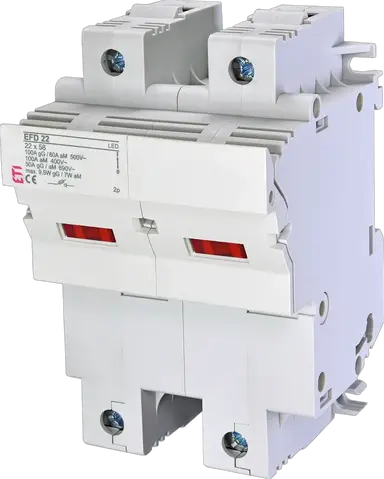

Accessories

Product

EAN code for a single product: 3838400063205
Net weight of the product: 0.055 kg
Net width: 22.2 mm
Net height: 58 mm
Net depth: 22.2 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 20 pcs
EAN code for a basic packaging: 3838895715931
Basic packaging weight: 1.16 kg
Basic Packaging Dimensions Height: 0.07 m
Basic Packaging Dimensions Width: 0.11 m
Basic Packaging Dimensions Depth: 0.135 m
Basic packaging volume: 0.001 m³

Transport Packaging

Transport packaging quantity: 240 pcs
EAN code for a transport packaging: 3838895715948
Transport packaging weight: 14.27 kg
Transport Packaging Dimensions Height: 0.25 m
Transport Packaging Dimensions Width: 0.235 m
Transport Packaging Dimensions Depth: 0.295 m
Transport packaging volume: 0.017 m³
Pallet quantity: 12,480 pcs
Customs tariff: 85361090

Size: 22x58 mm
Breaking capacity: 50 kA
Utilization category: Other

ETIM Classification – Version 9.0
