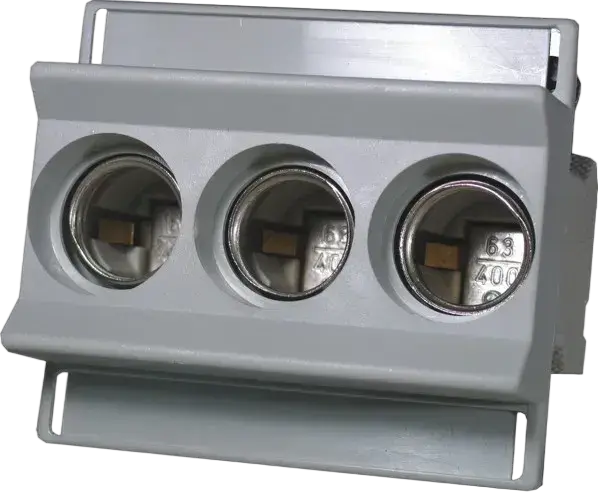

D02 E18 63A N M5 3p Fuse - base
- ETI Code:
- 002222033
- To use with:
- D0 fuse-links
- Catalogue Group:
- LV-fuse base
- Standards:
- IEC60269
- Application:
- Residential and industrial installation
- Type description:
- D02 Without protection cover
- Type of Installation:
- DIN rail
- Size:
- D02
- Product group:
- LV-fuse base
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Rated current:
- 63 A
- Number of poles:
- 3
7 Documents
16 Logistics
Product
- EAN code for a single product
- 3838400030092
- Net weight of the product
- 0.294 kg
- Net width
- 81.4 mm
- Net height
- 60.4 mm
- Net depth
- 47.65 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 5 pcs
- EAN code for a basic packaging
- 3838895007470
- Basic packaging weight
- 1.43 kg
- Basic packaging volume
- 1.987 dm³
Transport Packaging
- Transport packaging quantity
- 50 pcs
- EAN code for a transport packaging
- 3838895163855
- Transport packaging weight
- 29.39 kg
- Transport packaging volume
- 48 dm³
- Pallet quantity
- 800 pcs
- Customs tariff
- 85389099
5 ETIM
- Construction size
- D02
- Number of poles
- 3
- Rated voltage
- 400 V
- Rated current
- 63 A
- Material
- Porcelain
