004750001
Obsolete

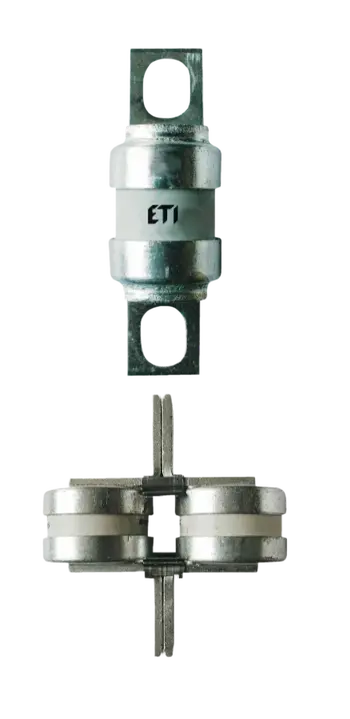

*BS8UQ/38/6A/240V Fuse link
- ETI Code:
- 004750001
- Product group:
- Semiconductor Protection
- Catalogue Group:
- Semiconductor Protection
- Type description:
- BS
- Rated current:
- 6 A
- Rated AC voltage:
- 240 V
- Rated DC voltage:
- 120 V
- Time-Current Characteristic:
- aR
- Breaking capacity AC:
- 100 kA
- Breaking capacity DC:
- 100 kA
- Application:
- For protection of semiconductor devices
- Power dissipation:
- 1 W
- Operating joule integral (A2s):
- 9
- Standards:
- IEC 60269-4, BS88 Part 4
3 Documents
15 Logistics
Product
- Net weight of the product
- 0.022 kg
- Net width
- 8 mm
- Net height
- 47 mm
- Net depth
- 8.7 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 5 pcs
- EAN code for a basic packaging
- 3838895415787
- Basic packaging weight
- 0.025 kg
- Basic packaging volume
- 0.025 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895356868
- Transport packaging weight
- 0.215 kg
- Transport packaging volume
- 0.055 dm³
- Pallet quantity
- 37,210 pcs
- Customs tariff
- 85361010
4 ETIM
- Size
- Other
- Breaking capacity
- 100 kA
- Rated current
- 6 A
- Utilization category
- Other
ETIM Classification – Version 9.0
