002921212

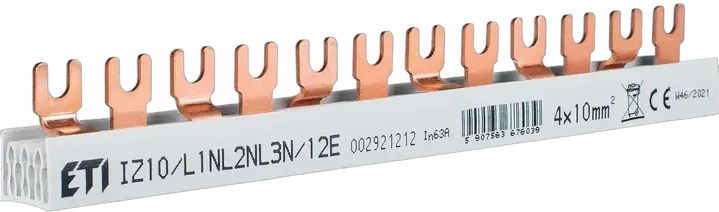

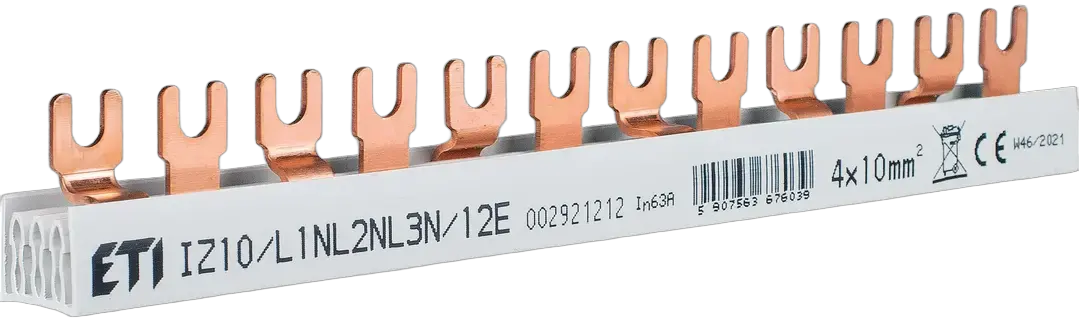

IZ10/L1NL2NL3N/12E Insulated busbar
- ETI Code:
- 002921212
- To use with:
- ETIMAT 6, SV, ETIMAT 10
- Number of poles:
- 3+N
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 63 A
- Rated cross section:
- 10 mm²
- Lenght in modules:
- 1x12
- No. Of Phases:
- 3
- Voltage type:
- AC/DC
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
1 Documents
15 Logistics
Product
- Net weight of the product
- 0.14 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 5907563676039
- Basic packaging weight
- 0.14 kg
- Basic packaging volume
- 0.19 dm³
Transport Packaging
- Intermediate packaging quantity
- 10 pcs
- EAN code for a intermediate packaging
- 5907563676992
- Intermediate packaging weight
- 1.4 kg
- Transport packaging quantity
- 120 pcs
- EAN code for a transport packaging
- 5907563670037
- Transport packaging weight
- 16 kg
- Transport packaging volume
- 22.8 dm³
- Pallet quantity
- 6,000 pcs
- Customs tariff
- 85389099
13 ETIM
- Can be cut to size
- Yes
- Cross section
- 10 mm²
- Suitable for devices with N-conductor
- Yes
- Number of phases
- 3
- Rated permanent current Iu
- 63 A
- Suitable for number of devices
- 6
- Module width
- 17.8 mm
- Number of poles
- 4
- Max. rated operation voltage Ue
- 690 V
- Insulated
- Yes
- Colour
- Grey
- Type of electric connection
- Fork
- Width in number of modular spacings
- 12
ETIM Classification – Version 9.0
