GSX elements are plug-in brackets, covers, dividers and cable glands that snap into the SOLID GSX enclosures on a 25 mm grid, enabling fast, tool-light panel assembly while preserving the cabinet’s IP and IK ratings.

001101724

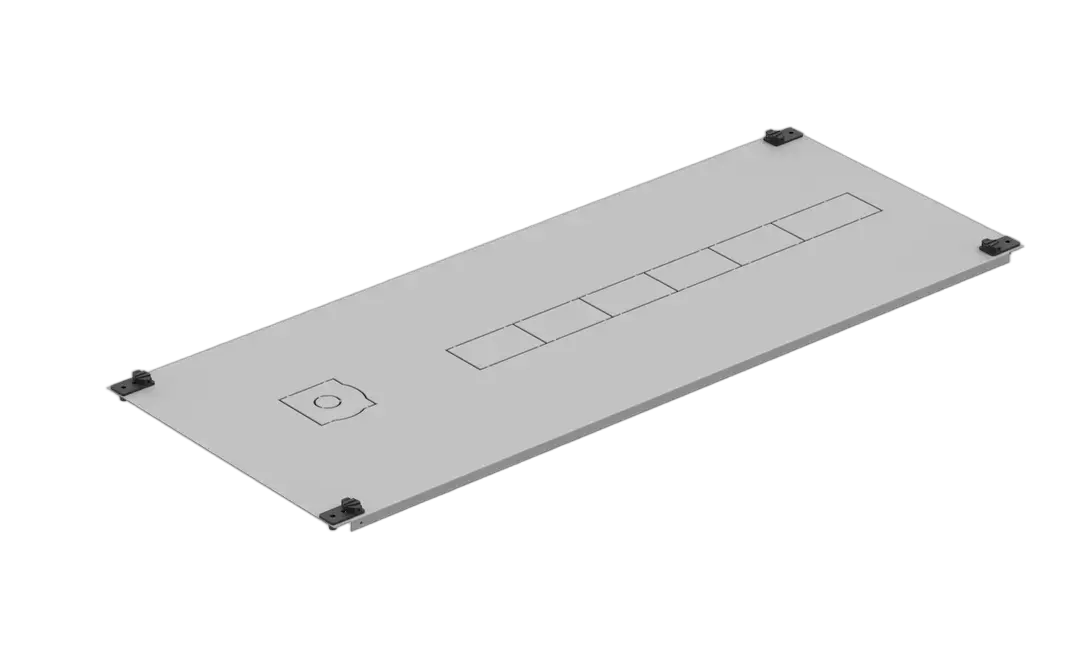

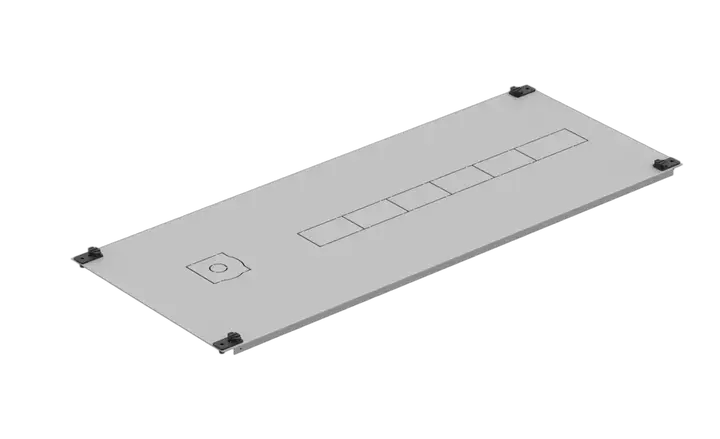

Image of CP 3.8-2 S1 M

CP 3.8-2 S1 M Cover

ETI Code:: 001101724
Function:: Wewnętrzny system konstrukcyjny
Color:: RAL 7035
Catalogue Group:: Solid GSX system elements
Product group accessories:: Covers for LBS 160 3,4P and modular equipment
Function accessories:: Cover for LBS 160 3,4P and modular equipment (950x300)
Width:: 950 mm

Product

Net weight of the product: 1.968 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 5902047601637
Basic packaging weight: 2.283 kg

Transport Packaging

Customs tariff: 85389099

Width: 950 mm
Material: Steel
Height: 300 mm
Surface finishing: Powder coating

ETIM Classification – Version 9.0

Configurator

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.

001101724 Cover CP 3.8-2 S1 M ETIBOX1 SOLID GSX INTERNAL STRUCTURAL SYSTEM AND ACCESSORIES Covers for LBS 160 3,4P and modular equipment Covers for LBS 160 3,4P and modular equipment Covers for LBS 160 3,4P and modular equipment International Enclosures, distribution boards, equipment ETIBOX Enclosure system and accessories SOLID GSX GSX system elements Function accessories: Cover for LBS 160 3,4P and modular equipment (950x300)Product group accessories: Covers for LBS 160 3,4P and modular equipment Width: 950 mm Catalogue Group: Solid GSX system elements Cover SOLID Catalogue Group: Solid GSX system elements Product group accessories: Covers for LBS 160 3,4P and modular equipment Function accessories: Cover for LBS 160 3,4P and modular equipment (950x300) Width: 950 mm
