001344010

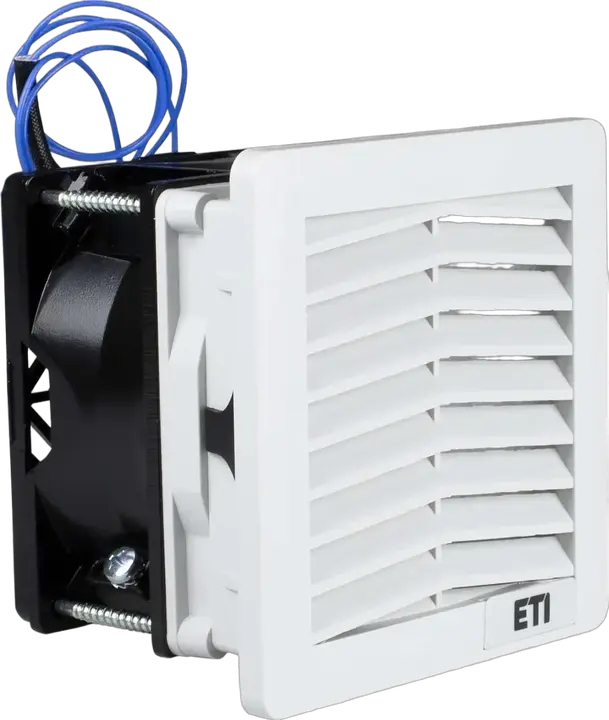

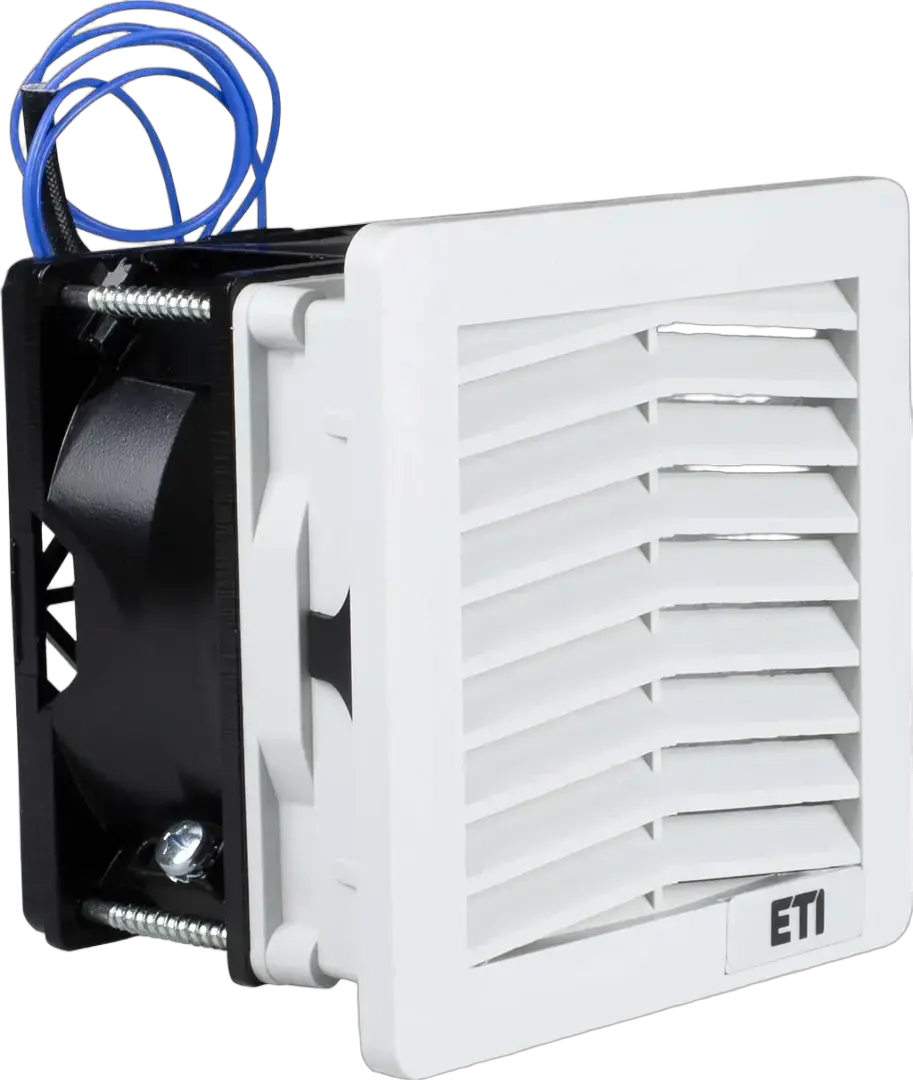

EF-107-22-230V Filterfan
- ETI Code:
- 001344010
- Working Temperature:
- -30-55 °C
- Approvals:
- CE
- Mounting wall thickness:
- 1-2 mm
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Rated current:
- 0.078 A
- Color:
- RAL 7035
- Rated power:
- 0.012 kW
- Airflow with exhaust filter:
- 15 m³/h
- Max static pressure:
- 40 Pa
- Filter Class:
- G3
- Width:
- 106.5 mm
- Storage Temperature:
- -40-70 °C
- IP rating:
- IP54
- Max Airflow:
- 22 m³/h
- Fan noise:
- 37 dB
- Height:
- 106.5 mm
- Connection type:
- Wire
- Depth:
- 80 mm
- Mounting cut-out:
- 92.5 mm
21 Logistics
Product
- Net weight of the product
- 0.65 kg
- Net width
- 106.6 mm
- Net height
- 106.6 mm
- Net depth
- 92.27 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400103581
- Basic packaging weight
- 0.65 kg
- Basic Packaging Dimensions Height
- 55 mm
- Basic Packaging Dimensions Width
- 100 mm
- Basic Packaging Dimensions Depth
- 55 mm
- Basic packaging volume
- 0.302 dm³
Transport Packaging
- Transport packaging quantity
- 20 pcs
- EAN code for a transport packaging
- 3838400103598
- Transport packaging weight
- 10.9 kg
- Transport Packaging Dimensions Height
- 90 mm
- Transport Packaging Dimensions Width
- 120 mm
- Transport Packaging Dimensions Depth
- 120 mm
- Transport packaging volume
- 1.296 dm³
- Pallet quantity
- 720 pcs
- Customs tariff
- 84213925
