004646576
Obsolete

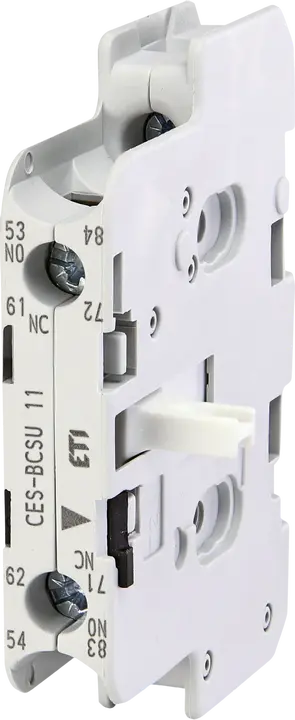

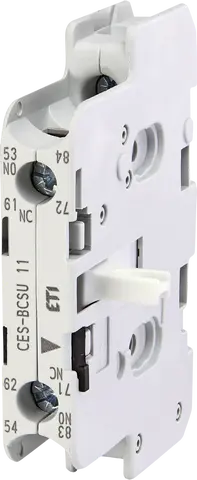

*CES-BCSU 11 Aux.contacts
- ETI Code:
- 004646576
- To use with:
- CES 40-CES 105
- No. of NC contacts:
- 1
- No. of NO contacts:
- 1
- Function accessories:
- Auxiliary contact blocks-lateral
- Function:
- Accessories
- Catalogue Group:
- Accessories CES
22 Logistics
Product
- EAN code for a single product
- 3838400021205
- Net weight of the product
- 0.025 kg
- Net width
- 21.1 mm
- Net height
- 70 mm
- Net depth
- 51.3 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 2 pcs
- EAN code for a basic packaging
- 3838895749394
- Basic packaging weight
- 0.052 kg
- Basic Packaging Dimensions Height
- 73 mm
- Basic Packaging Dimensions Width
- 49 mm
- Basic Packaging Dimensions Depth
- 52 mm
- Basic packaging volume
- 0.186 dm³
Transport Packaging
- Transport packaging quantity
- 72 pcs
- EAN code for a transport packaging
- 3838895749400
- Transport packaging weight
- 16 kg
- Transport Packaging Dimensions Height
- 215 mm
- Transport Packaging Dimensions Width
- 210 mm
- Transport Packaging Dimensions Depth
- 320 mm
- Transport packaging volume
- 14.448 dm³
- Pallet quantity
- 4,968 pcs
- Customs tariff
- 85365080
