002470007

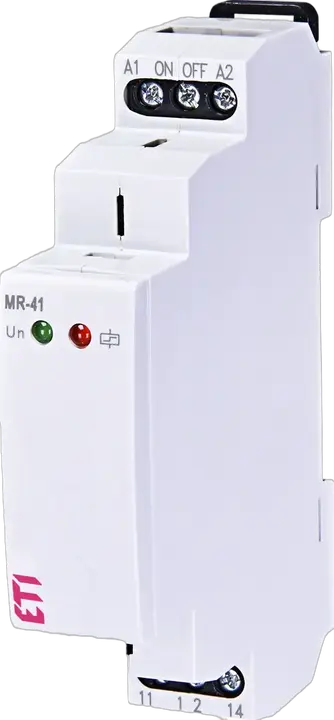

MR-41 UNI Memory relay
- ETI Code:
- 002470007
- Depth:
- 65 mm
- Rated operation current Ie at AC1:
- 16 A
- Rated operation power at AC1:
- 16 kW
- Number of poles:
- 1
- Catalogue Group:
- Time relay (Analog)
- Catalogue Subgroup:
- Memory relay
- Rated Frequency:
- 50/60 Hz
- Pollution Degree:
- 2
- Overvoltage Category:
- III
- Standards:
- EN 60669-2-2, EN 61010-1
- Application:
- EN 60669-2-2, EN 61010-1
- Type of Installation:
- TH 35
- IP rating:
- IP40
- Rated cross section:
- 2.5 mm²
- Max. inrush current:
- 30 A
- Number of modules:
- 1
- Switching voltage:
- 250 V
- Electrical cycles:
- 70,000
- Storage Temperature:
- -30-70 °C
- Working Temperature:
- -20-55 °C
- Type description:
- Memory and latching relays MR-41, MR-42
- Function:
- Memory relay
- Supply Voltage:
- 12-240 V
- Rated current:
- 16 A
- Voltage type:
- AC/DC
- Category:
- Memory and latching relays MR-41, MR-42
- No. of CO contacts:
- 1
21 Logistics
Product
- Net weight of the product
- 0.079 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.09 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 8594030338278
- Basic packaging weight
- 0.079 kg
- Basic Packaging Dimensions Height
- 25 mm
- Basic Packaging Dimensions Width
- 97 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.17 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895231240
- Transport packaging weight
- 0.793 kg
- Transport Packaging Dimensions Height
- 102 mm
- Transport Packaging Dimensions Width
- 284 mm
- Transport Packaging Dimensions Depth
- 75 mm
- Transport packaging volume
- 2.173 dm³
- Pallet quantity
- 4,600 pcs
- Customs tariff
- 85364900
16 ETIM
- Built-in depth
- 65 mm
- Mounting method
- DIN rail
- Voltage type (supply voltage)
- AC/DC
- Rated switch current
- 16 A
- Type of control voltage 2
- AC/DC
- Type of control voltage 1
- AC/DC
- Function
- Electronic switch
- Width in number of modular spacings
- 1
- Control voltage 2(Min)
- 240 V
- Supply voltage(Min)
- 12 V
- Control voltage 1(Min)
- 12 V
- Frequency control voltage 1(Min)
- 50 Hz
- Control voltage 2(Max)
- 240 V
- Control voltage 1(Max)
- 12 V
- Frequency control voltage 1(Max)
- 60 Hz
- Supply voltage(Max)
- 240 V
