002471804

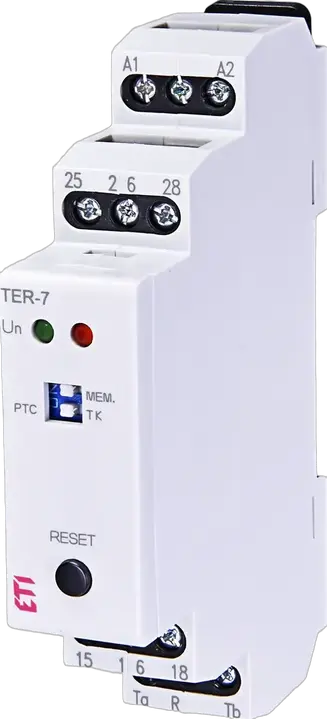

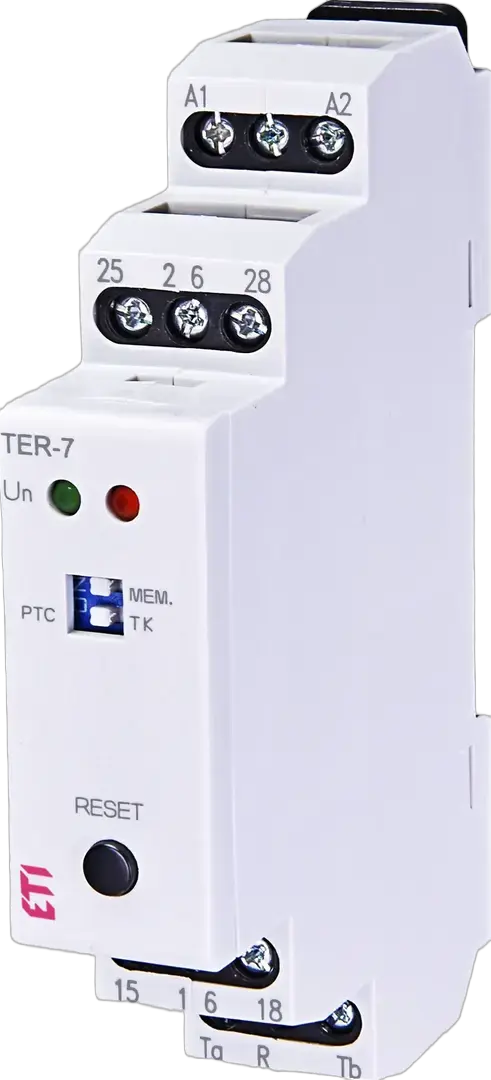

TER-7 Control relay
- ETI Code:
- 002471804
- Category:
- Thermostat for monitoring temperature of motor winding TER-7
- Catalogue Group:
- Temperature monitoring relays
- Catalogue Subgroup:
- Thermostat for monitoring temperature of motor winding
- Rated Frequency:
- 50 Hz
- Type description:
- Thermostat for monitoring temperature of motor winding TER-7
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 24-240 V
- Sensor Type:
- PTC temperature of motor winding
- Number of contacts:
- 2
- Rated current:
- 8 A
- Voltage type:
- AC/DC
- No. of CO contacts:
- 1
- Maximum load capacity at AC1:
- 2,000 VA
21 Logistics
Product
- Net weight of the product
- 0.13 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.09 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895424208
- Basic packaging weight
- 0.091 kg
- Basic Packaging Dimensions Height
- 25 mm
- Basic Packaging Dimensions Width
- 97 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.17 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895424222
- Transport packaging weight
- 1.4 kg
- Transport Packaging Dimensions Height
- 102 mm
- Transport Packaging Dimensions Width
- 284 mm
- Transport Packaging Dimensions Depth
- 75 mm
- Transport packaging volume
- 2.173 dm³
- Pallet quantity
- 4,600 pcs
- Customs tariff
- 85364900
8 ETIM
- Model
- Digital
- Assembly depth
- 65 mm
- Nominal switching current at 250 V, potential free
- 16 A
- Width in number of modular spacings
- 1
- Rated frequency(Min)
- 50 Hz
- Rated voltage(Min)
- 24 V
- Rated voltage(Max)
- 230 V
- Rated frequency(Max)
- 50 Hz
ETIM Classification – Version 9.0
