002470303

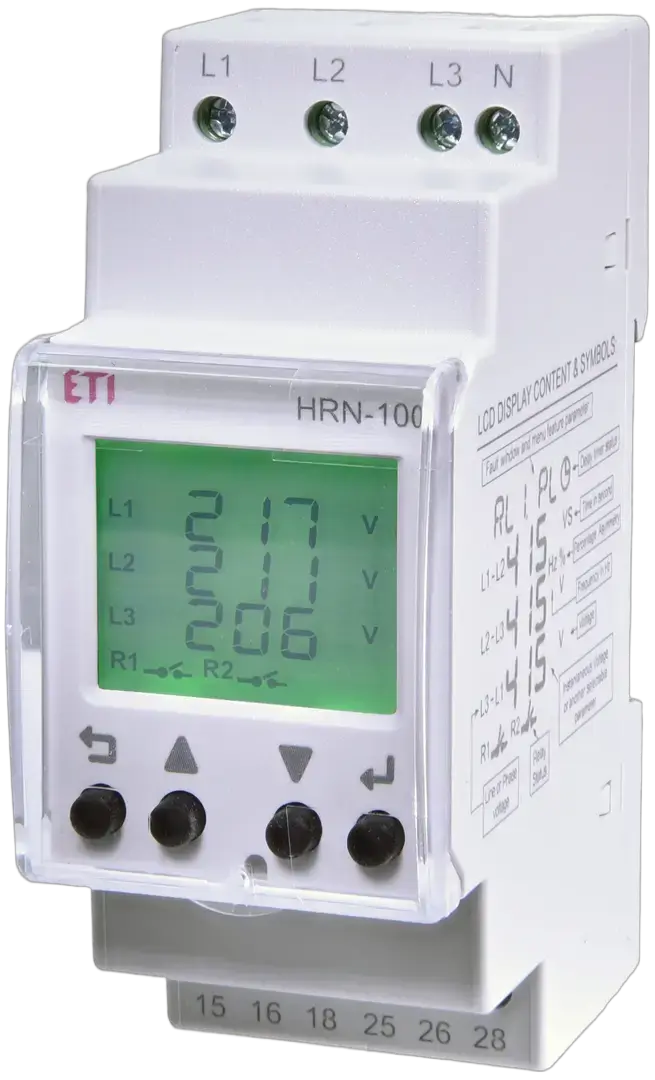

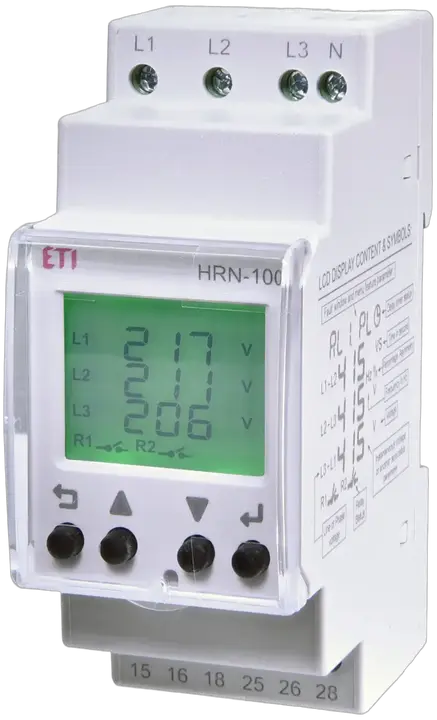

HRN-100/2 Control relay
- ETI Code:
- 002470303
- Catalogue Group:
- Control and measuring Voltage relays
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 400 V
- Type of Control:
- sequence phase, phase and neutral failure, frequency
- Number of contacts:
- 2
- Voltage type:
- AC
- Maximum load capacity at AC1:
- 1,200 VA
- Rated current:
- 5 A
- No. of CO contacts:
- 1
14 Logistics
Product
- Net weight of the product
- 0.132 kg
- Net width
- 36 mm
- Net height
- 92.5 mm
- Net depth
- 66.31 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895981015
- Transport packaging weight
- 0.132 kg
- Transport Packaging Dimensions Height
- 61 mm
- Transport Packaging Dimensions Width
- 97 mm
- Transport Packaging Dimensions Depth
- 78 mm
- Transport packaging volume
- 0.462 dm³
- Pallet quantity
- 1,920 pcs
- Customs tariff
- 85364900
24 ETIM
- Single-phase under voltage possible
- Yes
- Width
- 36 mm
- Three-phase under voltage possible
- Yes
- Single-phase hysteresis possible
- Yes
- Max. permitted delay-on energization time
- 999 s
- Min. adjustable delay-on energization time
- 0.1 s
- Max. permitted off-delay time
- 999 s
- Voltage type (supply voltage)
- AC
- Min. adjustable off-delay time
- 0.1 s
- Three-phase over voltage possible
- Yes
- Type of voltage measuring range
- AC
- Rated switch current
- 5 A
- Single-phase over voltage possible
- Yes
- Depth
- 66.5 mm
- Three-phase hysteresis possible
- Yes
- Type of electric connection
- Screw connection
- Number of contacts as change-over contact
- 2
- Height
- 90 mm
- Response value voltage(Min)
- 90 V
- Voltage measuring range 2(Min)
- 150 V
- Voltage measuring range 1(Min)
- 85 V
- Voltage measuring range 1(Max)
- 310 V
- Response value voltage(Max)
- 500 V
- Voltage measuring range 2(Max)
- 535 V
ETIM Classification – Version 9.0
