ETI News

EFI-P - New series of Residual Current Circuit Breakers

ETI is launching new series of Residual current circuit breakers (RCCB) EFI-P.



Main Advantages:

-100%  automated control of all key parameters of each product

- Increased reliability

- Reduced power dissipation by up to 45%



Detailed info here: https://efi.etigroup.eu/

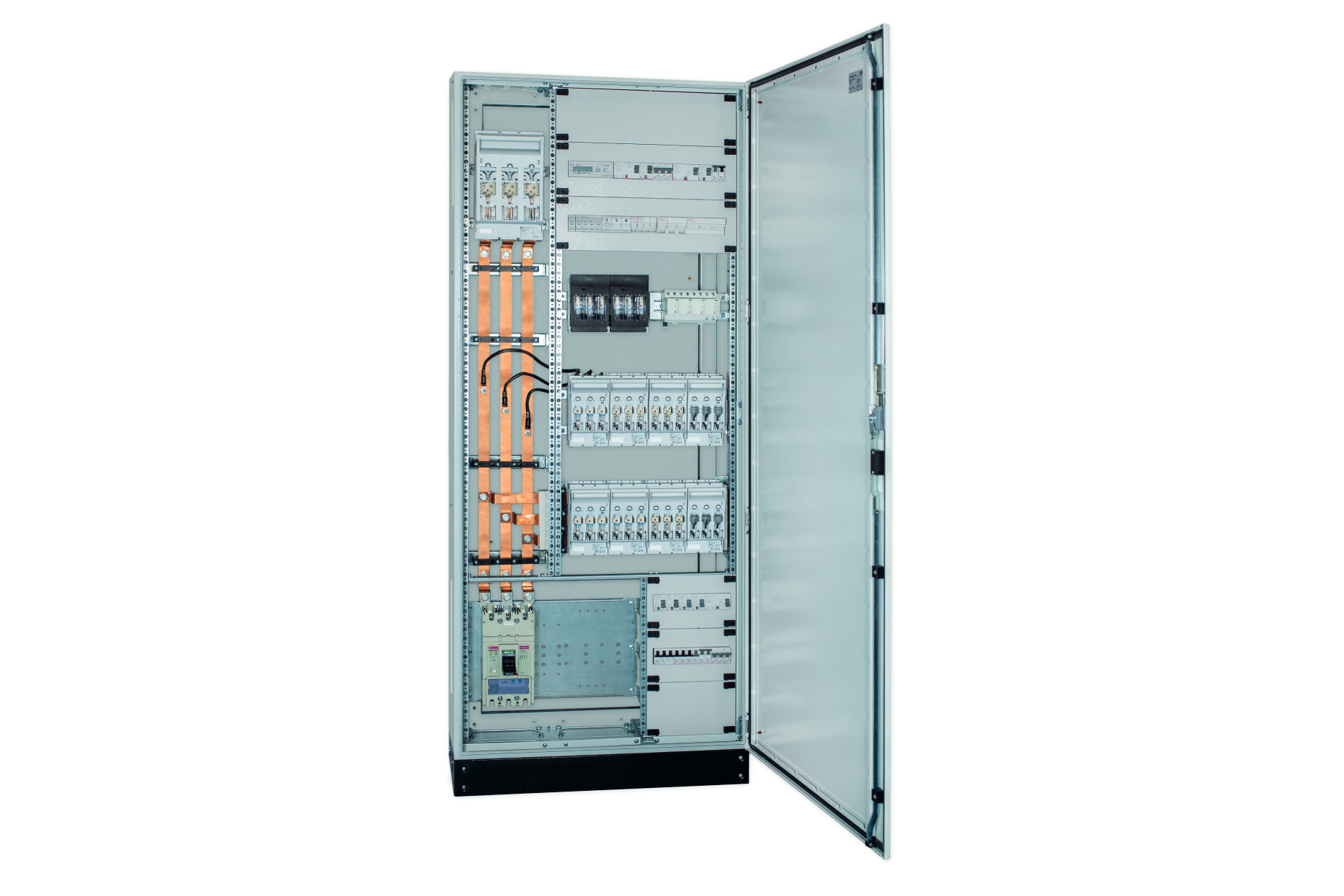

The new ETI HXS standing enclosures of the SOLID GSX System

The ETI's offer was expanded with new metal free-standing HXS300 and HXS400 cabinets, while a wide range of additional and indoor equipment greatly enhances the scope of the entire SOLID GSX system.

Advantages:

• High versatility and flexibility of configuration

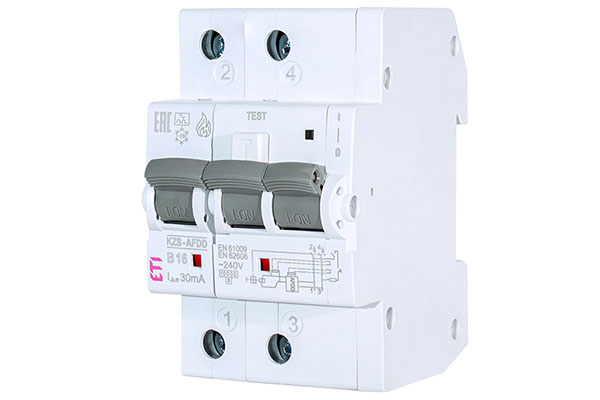

NEW KZS AFDD - Arc fault Detection Devices series

ETI is launching a new series of KZS AFDD - arc fault detection device with complete protection: miniature circuit breaker (MCB), residual current circuit breaker (RCCB) and arc fault protection (AFDD) in one device. Main purpose of the product is overcurrent and short circuit protection of both poles, with universal connection - supply is posible both from top and bottom terminals.

ETI products library on wscaduniverse

Wscaduniverse is the world´s biggest Electrical-WSCAD library and from now on there is also more than 4000 ETI products in the field of protection and contactors.

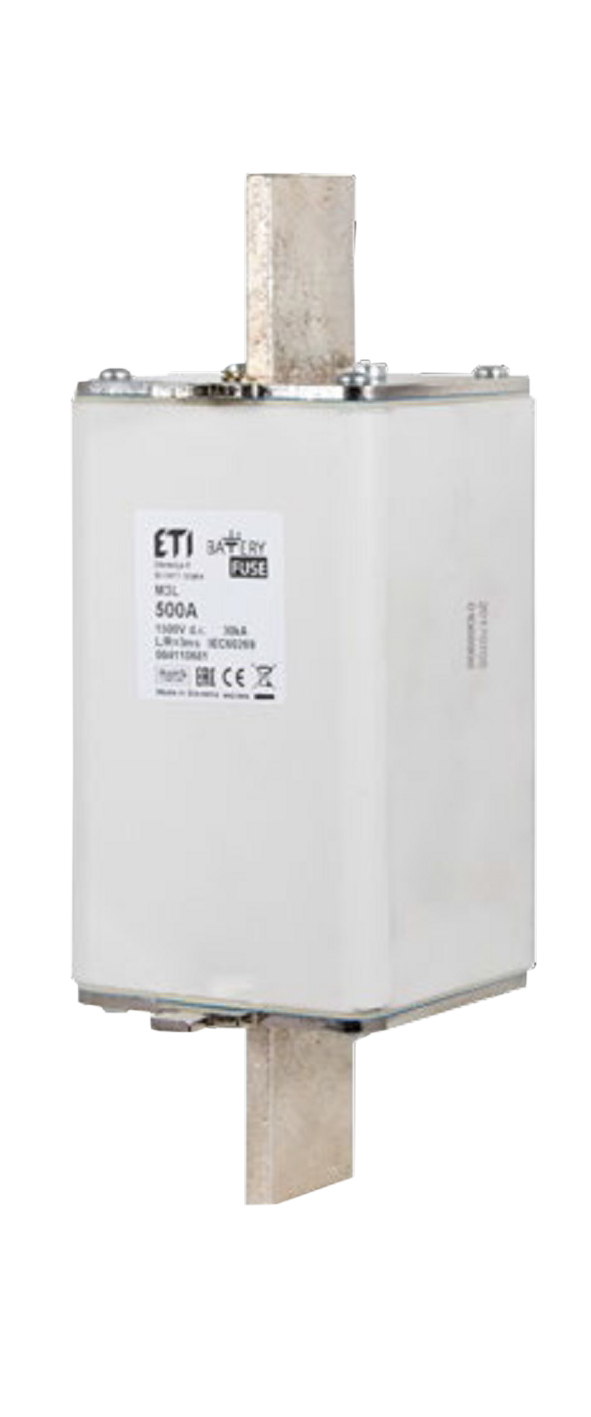

New series of NHXL battery fuse link 1500V d.c.

 ETI presents a completely new generation of NV/NH BATTERY fuse-links, designed for 1.500V d.c.



General characteristics:
Rated voltage 1500V d.c. (L/R=3ms)
Breaking capacity 30kA d.c.
Standard IEC60269-7
Application Fuse link for DC application. Applied in fuse
base PK XL 1500V.

New series of space saving surge arresters ETITEC V

This power surge protective devices are designed to meet all your surge protection needs for any low voltage installation. DIN rail mounted surge protectors are easy to install in any standardized distribution panel or control cabinets. We have also extended our offer with compact versions of type 2 and type 3 surge protectors for limited space requirements.

Distribution boxes EDS

ETI presents distribution boxes EDS. They are designed for workshops, production halls and other types of rooms where you need more than one socket in one place.


Space saving with new ECG Combo distribution board

ETI is introducing new discrete Flush mounted distribution boards ECG COMBO series: modular + IT devices in one distribution board. Available heights: 3 rows up to 5 rows.


Almost 3/4 of Etis's products are already equipped with 3D models



For most of our products, you have an option to view and download 3D models.


New Auxiliary Switches for MCBs and RCBOs

We have redesigned our 2-in-1 auxiliary and signal switch for the 10kA ETIMAT P10 MCBs and developed a completely new auxiliary switch for RCBOs KZS-2M and KZS-4M.

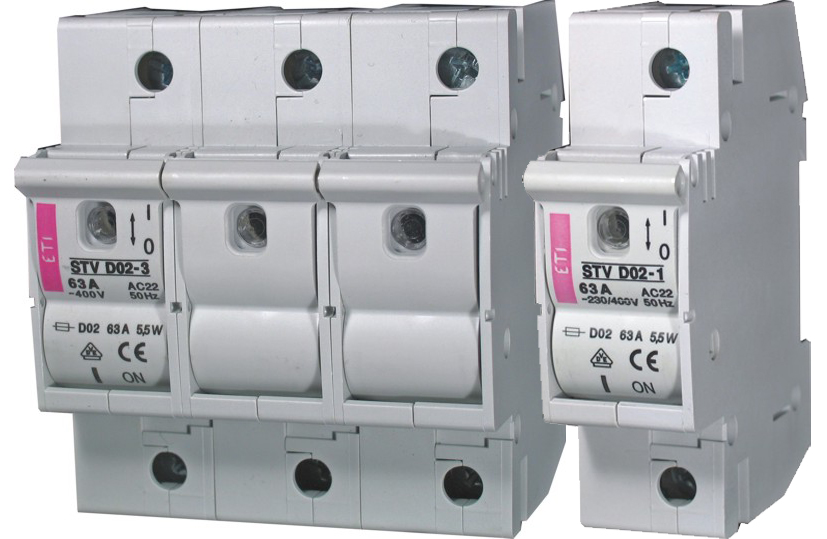

Switch-disconnector-fuse STV D02

Switch-disconnector-fuse combines the functions of the switch and of the fuse D0 with the following advantages:

- The changing of the fuse-link without danger of direct touch of parts under voltage.
- Snap-on mounting on rail according to EN 60715.
- The complete protection against touch according to VBG 4.
- The possibility of connecting supply from the upper or from the lower side.
- It can be used as a main switch and tariff fuse in a single device.
- Possibility of sealing in ON or OFF positions with or without fuse-link

AFDD - Arc fault Detection device

Eti is launching new product called AFDD - Arc fault Detection Device. It is fully combined with residual current circuit breaker (RCCB) and miniature circuit breaker (MCB).
Main purpose of the product is that it detects and quenches arc faults in final circuits.
